12 Lab Tests for Water Bound Macadam (WBM) Road Quality Control

Water bound macadam works on a beautifully simple idea: clean, crushed stone, mechanically interlocked by rolling, with the voids filled by stone screenings, binding material, and water. There is no bitumen holding it together — so the aggregate itself has to be good. A weak stone or a bad gradation in a WBM layer cannot be hidden later; it shows up as rutting, disintegration, and a road that falls apart in the first monsoon.

This article is a working reference of the 12 lab tests for water bound macadam (WBM) road quality control — each with its purpose, the governing standard, and the acceptance limit to check against. Keep this list with your site QC register.

A Quick Word on WBM Construction

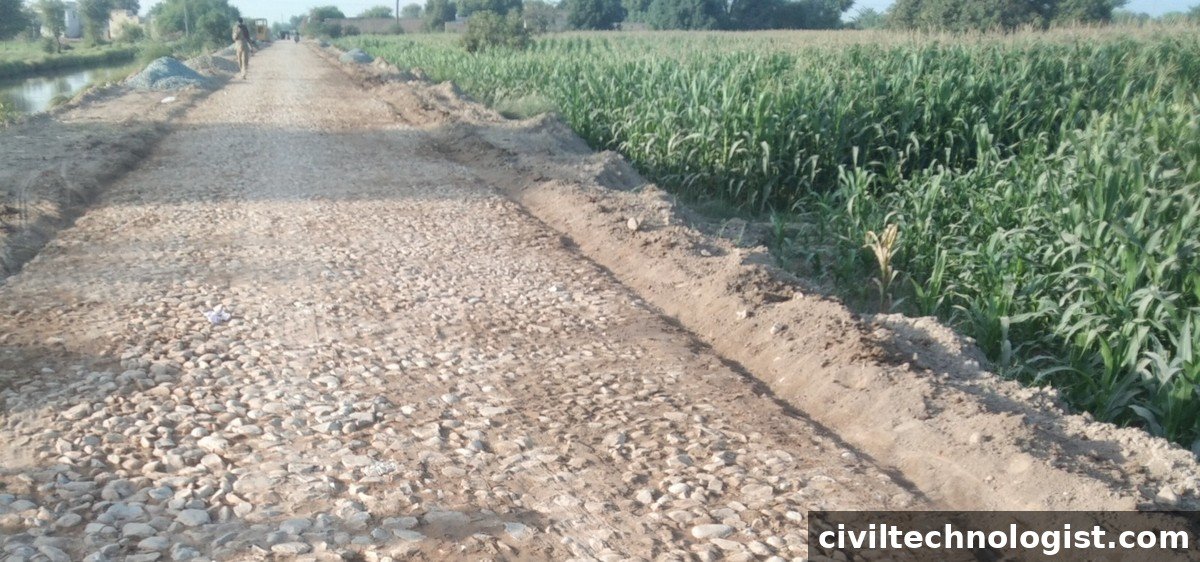

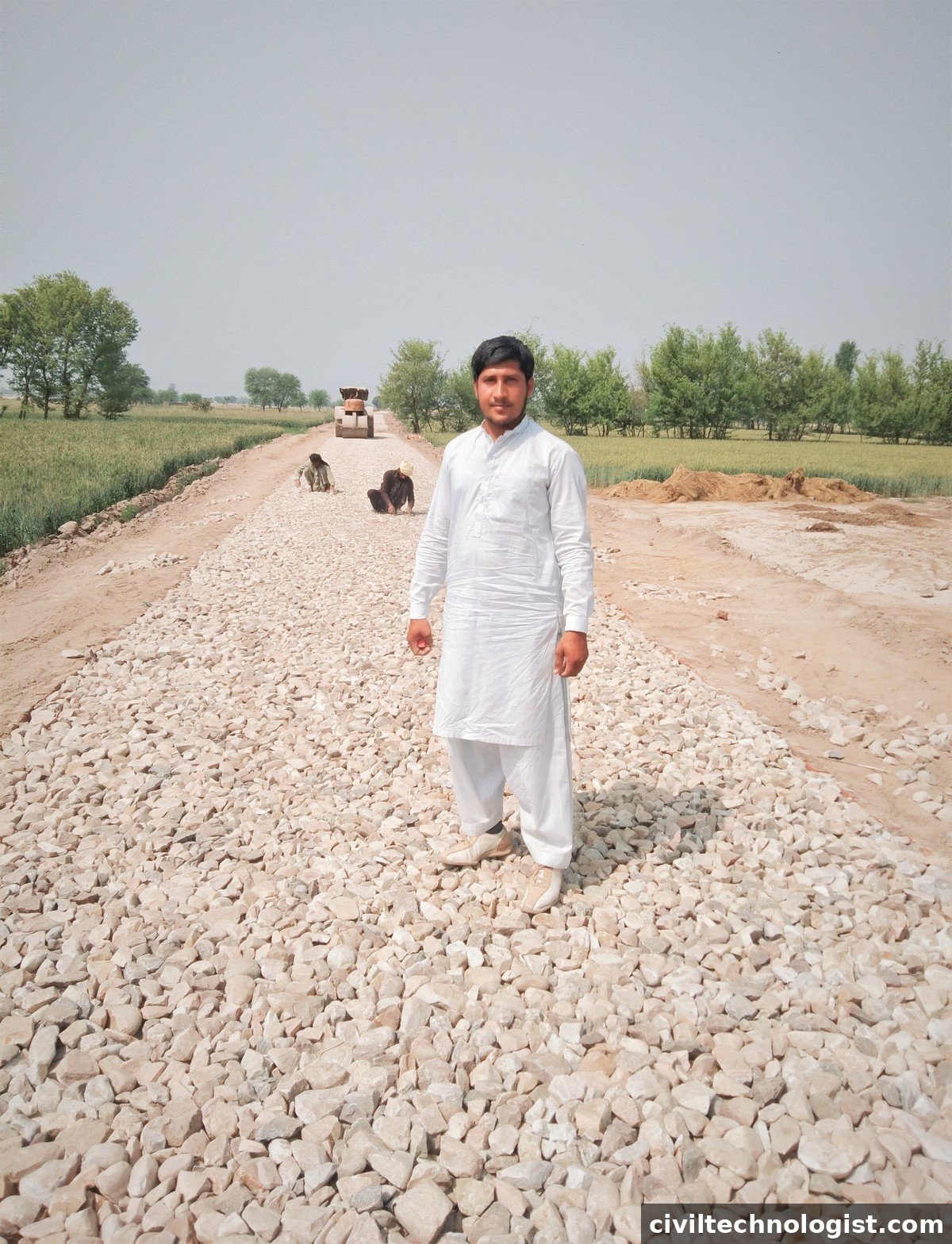

WBM (governed in India/Pakistan-region practice by MORTH Clause 404 and IRC 19) is built in layers: coarse aggregate (“metal”) is spread, dry-rolled to interlock, then screenings are spread and wet-rolled so the fines wash into the voids (“grout flush”), and the surface is finished with binding material if needed. Because strength comes from interlock rather than a binder, nearly every acceptance criterion below targets the aggregate.

The 12 Tests

Test No. 1 above (sieve analysis) is judged against these grading bands. Know them — they are the commonest numbers a QC engineer checks on a WBM job:

Sieve size	Grading 1 (63–45 mm)	Grading 2 (53–22.4 mm)	Grading 3 (45–22.4 mm)
75 mm	100%	—	—
63 mm	90–100%	100%	—
53 mm	25–75%	95–100%	100%
45 mm	0–15%	65–90%	90–100%
22.4 mm	0–5%	0–10%	0–10%
11.2 mm	—	0–5%	0–5%

Percent passing, by weight. Grading 1 is the coarsest (base layers); Grading 3 the finest (thinner layers). Screenings for void-filling follow their own separate grading (Type A: 13.2 mm; Type B: 11.2 mm nominal).

Practical note: The single commonest gradation failure I have seen is excess fines from crusher dust in the “coarse” aggregate — the 22.4 mm passing creeps above the band and the layer loses interlock. Test the stack at site, not just the quarry certificate.

WBM vs WMM: Know the Difference

Point	WBM (Water Bound Macadam)	WMM (Wet Mix Macadam)
Binding	Mechanical interlock + screenings + water	Premixed graded aggregate + water, plant-mixed
Construction	Layer-by-layer spreading and rolling on site	Mixed in a plant, laid by paver
Gradation control	Good (site-controlled)	Better (plant-controlled)
Speed	Slower	Faster, more uniform
Typical use	Rural roads, lower traffic, sub-base	Base course for higher-traffic roads (MORTH Clause 406)

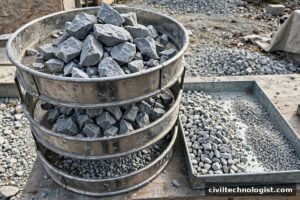

1. Sieve Analysis / Gradation of Coarse Aggregate

• Purpose: Confirms the aggregate follows one of the specified grading bands (IRC 19 / MORTH Grading 1, 2, or 3). Correct gradation gives the void structure that allows interlock; too many fines and the layer loses strength, too uniform and it won’t lock.
• Standard: IS 2386 (Part 1).
• Acceptance: Within the specified grading band, e.g. Grading 1 (63–45 mm): 100% passing 75 mm, 90–100% passing 63 mm, 25–75% passing 53 mm, 0–15% passing 45 mm, 0–5% passing 22.4 mm. Test about 1 per 200 m³ of aggregate.

2. Aggregate Impact Value (AIV)

• Purpose: Measures toughness — the aggregate’s resistance to sudden impact and the pounding of heavy axles transmitted through the layer.
• Standard: IS 2386 (Part 4) (see our base course guide); aggregates that soften in water are tested wet per IS 5640.
• Acceptance: ≤ 30% for WBM base course; relaxed to ≤ 40% where WBM is used as sub-base. Lower is stronger: below 10% is exceptionally strong, 10–20% strong, 20–30% satisfactory for road surfacing.

3. Los Angeles Abrasion Value

• Purpose: Measures resistance to abrasion and attrition — the grinding the stone suffers during rolling and under traffic.
• Standard: IS 2386 (Part 4). (Specifications ask for LA or impact value — one of the two suffices.)
• Acceptance: ≤ 40% for WBM base course; relaxed to ≤ 50% for sub-base use.

Practical note: On most WBM jobs you will run either the impact test or the LA abrasion test for acceptance, not both. The impact test needs simpler equipment and is the common choice on smaller sites.

4. Aggregate Crushing Value

• Purpose: Measures resistance to crushing under a gradually applied compressive load — a general indicator of stone strength.
• Standard: IS 2386 (Part 4).
• Acceptance: Commonly ≤ 30% for aggregates in wearing/surface courses. MORTH’s WBM clause specifies LA or impact value rather than crushing value, so treat this as a supplementary check — useful when comparing a new quarry source against an approved one.

5. Flakiness Index and Elongation Index (Combined)

• Purpose: Flaky and elongated particles break under rollers and don’t interlock — WBM depends on cubical, angular stone locking together.
• Standard: IS 2386 (Part 1).
• Acceptance: Combined flakiness + elongation index ≤ 35% (enforced for crushed/broken stone and crushed slag).

6. Water Absorption of Aggregate

• Purpose: High absorption means porous, weak stone that will also suck water into the pavement structure and disintegrate with weathering.
• Standard: IS 2386 (Part 3).
• Acceptance: ≤ 2%. If absorption exceeds 2%, the soundness test (No. 12) becomes mandatory on the delivered material.

7. Specific Gravity of Aggregate

• Purpose: Needed for yield and quantity computations (converting tonnage to compacted volume), and a quick indicator of stone quality — unusually low specific gravity flags porous or lightweight material.
• Standard: IS 2386 (Part 3).
• Acceptance: No fixed pass/fail in the WBM clause; sound crushed stone typically falls in the 2.6–2.9 range. Use the measured value in quantity reconciliation and flag anything much below 2.6.

8. California Bearing Ratio (CBR) of Subgrade/Sub-base

• Purpose: WBM is only as good as what it sits on. CBR checks that the subgrade or sub-base can support the WBM layer and the traffic above it without excessive deformation.
• Standard: IS 1498 (laboratory and field CBR).
• Acceptance: As specified in the design — commonly a minimum of about 5–8% for the subgrade beneath a WBM base on rural roads; always follow the project specification and the pavement design, not a thumb rule.

9. Field Density of the Compacted Layer

• Purpose: Confirms the layer was actually compacted, not just rolled over. The sand replacement method is the field reference.
• Standard: IS 2720 (Part 28) — sand replacement method.
• Acceptance: Commonly ≥ 98% of maximum dry density for granular sub-base layers; for WBM proper, adequate compaction is also judged in the field by the grout flush (a visible wave of slurry ahead of the roller during wet rolling) and by the absence of creep or rutting under the roller. Test about 1 per 500 m² per layer.

10. Layer Thickness Check

• Purpose: A WBM layer thinner than designed fails structurally regardless of how good the stone is. Thickness is checked by cores, test pits, or probe/rod measurements.
• Standard: MORTH Clause 404 / project specification.
• Acceptance: Mean thickness ≥ specified thickness; any individual measurement ≥ specified − 5 mm. Check about 1 per 1000 m².

11. Surface Regularity (Straight Edge Test)

• Purpose: Checks riding quality and, just as important, drainage — a WBM surface that ponds water will soften and unravel.
• Standard: 3 m straight edge per IRC 19 / MORTH practice, checked both longitudinally and transversely, with camber verified by camber board/template (commonly every 20 m, within about ±0.3% of design camber).
• Acceptance: Commonly ≤ 12 mm maximum undulation under a 3 m straight edge (confirm the exact figure in your project specification — some specs are stricter).

12. Soundness of Aggregate

• Purpose: Measures resistance to disintegration from weathering (repeated wetting–drying and salt crystallization), simulating years of exposure in a few lab cycles.
• Standard: IS 2386 (Part 5) — sodium or magnesium sulphate soundness.
• Acceptance: Required when water absorption exceeds 2%. Typical limits: ≤ 12% loss with sodium sulphate and ≤ 18% loss with magnesium sulphate after 5 cycles.

QC Frequency at a Glance

Test group	Typical frequency (MORTH practice)
Gradation, impact/LA abrasion, flakiness	1 per 200 m³ of aggregate
Water absorption, specific gravity, soundness	Per source approval + as required
CBR	Per design / per stretch
Field density	1 per 500 m² per layer
Thickness	1 per 1000 m²
Surface regularity	Continuous / every 100 m
Camber	Every 20 m

Common Errors to Avoid

A test without a record is a rumour. For every WBM test above, the site QC register should capture:

Field	Example entry
Date and shift	14-Oct-2026, Day
Location (chainage + layer)	Km 12+200 to 12+700, WBM Grading 2
Material source / stack ID	Quarry X, Stack S-4
Test performed	Aggregate Impact Value
Standard followed	IS 2386 (Part 4)
Result	24%
Acceptance limit	≤ 30%
Verdict	Accepted
Tested by / witnessed by	Lab tech + Site engineer sign

Practical note: Photograph the failed material in the stack before rejection and note the truck/dumper number. When a supplier disputes a rejection a week later, that photo and that dumper number end the argument.

Reading WBM Quality on Site (Before the Lab Calls Back)

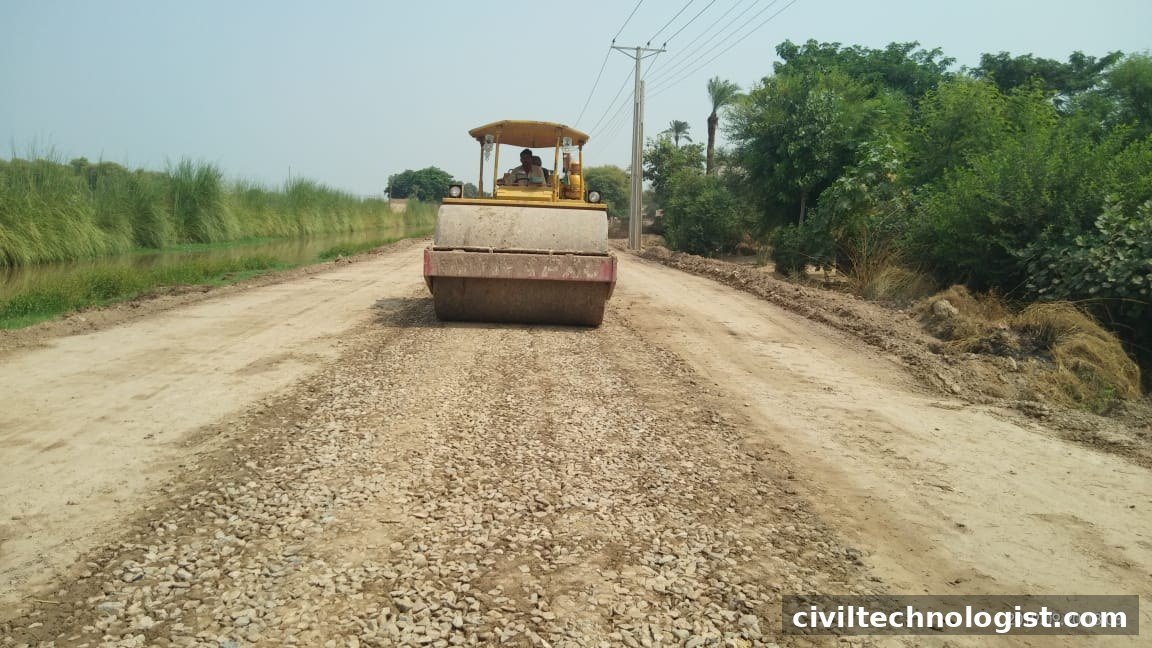

• Grout flush during wet rolling — a visible wave of slurry ahead of the roller means voids are filling. No flush = dry layer or wrong screenings quantity.
• No creep under the roller — the layer should not shove or rut under the wheels. Movement means poor interlock or a soft subgrade.
• Ringing stone — well-interlocked, hard aggregate rings under a hammer tap; soft stone thuds.
• Surface texture after rolling — a hungry (open) surface needs more screenings; a fatty (flushed) surface has too many fines and will bleed under traffic.
• Edge condition — ravelled, loose edges signal inadequate rolling at the margins or weak aggregate.
• Testing the quarry but not the stack at site — segregation during transport and dumping changes gradation; test the material as delivered and as spread.
• Skipping the wet-rolling check — no grout flush means voids aren’t filling, whatever the lab reports say.
• Rolling a dry layer — WBM needs water during rolling; dry rolling crushes stone without developing interlock.
• Accepting on looks — a neatly finished WBM surface can still hide weak stone; the impact/abrasion numbers are the real acceptance.

Frequently Asked Questions

Which is better for WBM acceptance: impact value or Los Angeles abrasion?
Specifications accept either. Both measure toughness-related properties; the impact test is simpler and more common on small to medium sites, while LA abrasion is often preferred by larger laboratories. Meet the limit for whichever one your specification names.

What is the maximum aggregate impact value allowed for WBM?
30% for WBM used as a base course, relaxed to 40% when WBM is used as a sub-base (MORTH physical requirements for coarse aggregate).

How is WBM compaction checked in the field?
By the sand replacement density test (IS 2720 Part 28) against 98% of maximum dry density, and — specific to WBM — by observing the grout flush: a wave of screening slurry moving ahead of the roller during wet rolling, with no creep or rutting under the wheels.

Why is water absorption limited to 2% for WBM aggregate?
Because absorptive stone is porous and weak, draws water into the pavement, and breaks down under weathering. Above 2%, the specification requires the soundness test to prove the stone can survive exposure.

What are the 12 lab tests for WBM road quality control?
Sieve analysis/gradation, aggregate impact value, Los Angeles abrasion, crushing value, flakiness + elongation index, water absorption, specific gravity, CBR of subgrade, field density, layer thickness, surface regularity, and soundness — each with its standard and acceptance limit as detailed above.

What is the difference between WBM and WMM?
WBM (water bound macadam) is built layer-by-layer on site with mechanical interlock; WMM (wet mix macadam) is plant-mixed graded aggregate laid by paver. WMM gives better uniformity and is preferred for higher-traffic roads; WBM suits rural and low-traffic work.

How thick is a WBM layer?
Typically 75–100 mm compacted per layer (MORTH Clause 404), built up in the specified number of layers. Thickness is checked against the design — mean ≥ specified, individual ≥ specified − 5 mm.

Why is water used in WBM construction?
Water lubricates the particles during rolling (helping interlock), washes screenings into the voids to create the grout flush, and binds the fines. Dry-rolled WBM never develops proper interlock.

What is grout flush in WBM?
The wave of screening-and-water slurry seen moving ahead of the roller during wet rolling — visible proof that voids are filling. Its absence is a red flag.

Can WBM be used as a wearing course?
Only for very low traffic (village roads). For anything heavier, WBM serves as base/sub-base under a bituminous surfacing. An unsurfaced WBM layer ravels under fast traffic and softens in rain.

Final Thoughts

WBM quality control is aggregate quality control. If the stone is strong, cubical, well-graded, and clean — and it is rolled wet to a proper grout flush on a sound subgrade — the layer will serve for years with minimal maintenance. Run these 12 tests at their proper frequencies, record every result in the QC register, and reject weak material at the stack, not after it is laid.

---

Written by Mohsin Raza Adil — BSc Civil Engineering Technologist (NTC-registered), Pakistan.
