Every road you drive on belongs to several classifications at once: what it is for (its function), what it is built of (its material), and who looks after it (its administration). Understanding these classifications helps you read drawings correctly, interpret specifications, and — for students — answer the exam question properly instead of listing decorative labels.
This guide covers the real engineering classifications of roads, Pakistan’s road administration system, and the fundamental flexible vs rigid pavement distinction. The finished road also carries road marking that guides drivers.
Classification by Function
Functional classification is based on what the road is meant to do — move traffic over long distances (mobility) or give access to properties (accessibility).
- Freeways / motorways — 100% mobility. Fully access-controlled, no direct property access, no slow traffic. Pakistan’s M-2 (Lahore–Islamabad) is the classic example.
- Arterials — high mobility with some access. National highways like the N-5 (Karachi–Peshawar) carry long-distance traffic between cities while still serving towns along the way.
- Collectors — the middle layer. They collect traffic from local streets and feed it to arterials; in rural areas, district and farm-to-market roads play this role.
- Local streets / roads — 100% access. Village streets, mohalla roads, and farm tracks exist to reach properties, not to move through traffic.
Classification by Surface Material

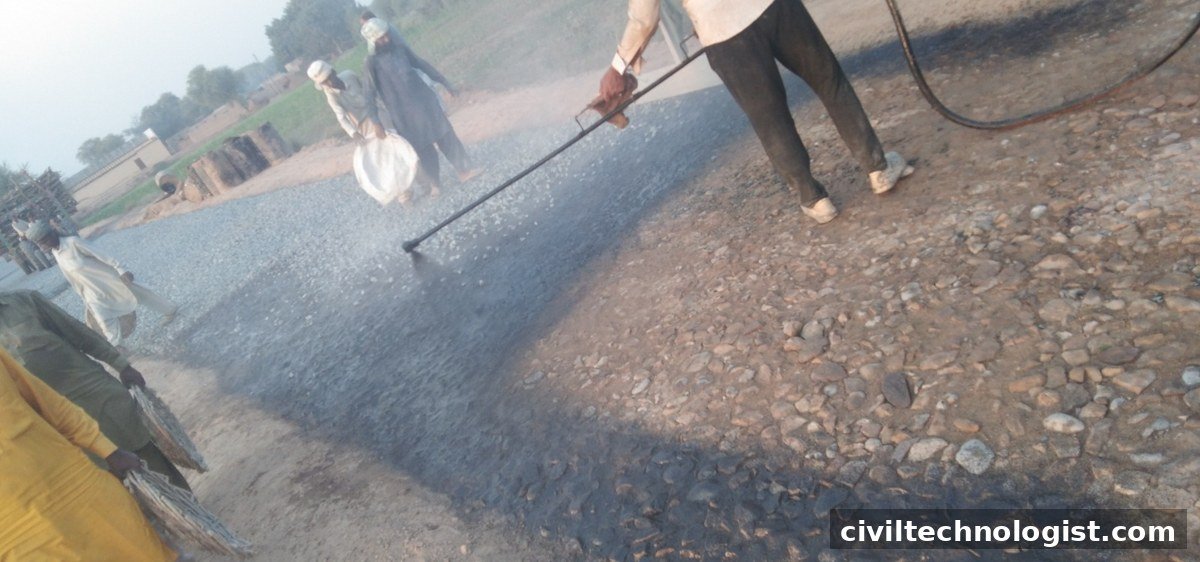

Hot bitumen being sprayed over aggregate during triple surface treatment (TST) — a common low-cost surfacing for rural roads.
This is the classification you meet most on site:
| Type | Description | Typical use |
|---|---|---|
| Earthen road | Natural soil, shaped and compacted | Village tracks, very low traffic |
| Gravel road | Compacted gravel surfacing over earth | Rural access roads |
| WBM road | Water bound macadam base as the wearing surface | Rural roads, low traffic |
| Surface-dressed road (TST/DST) | Bitumen sprayed over aggregate in one (single) or two (double) applications — triple (TST) for heavier use | Provincial and rural roads; Pakistan’s standard low-cost blacktop |
| Bituminous / asphalt road | Hot-mix bituminous layers (binder + wearing course) over granular base | Highways, urban roads — the common ‘metalled’ road |
| Concrete road | Cement concrete slab as the wearing surface | Heavy-traffic corridors, intersections, bus terminals, toll plazas |
Classification by Administration — Pakistan’s System
In Pakistan, roads are administered at three levels:
- Federal roads — managed by the National Highway Authority (NHA): national highways (the N-series), motorways (the M-series), expressways, and strategic roads.
- Provincial roads — managed by provincial highway departments; they act as feeders connecting districts to the national network.
- District / municipal roads — managed by district governments, municipal corporations, and cantonment boards.
Flexible vs Rigid Pavements — The Core Distinction

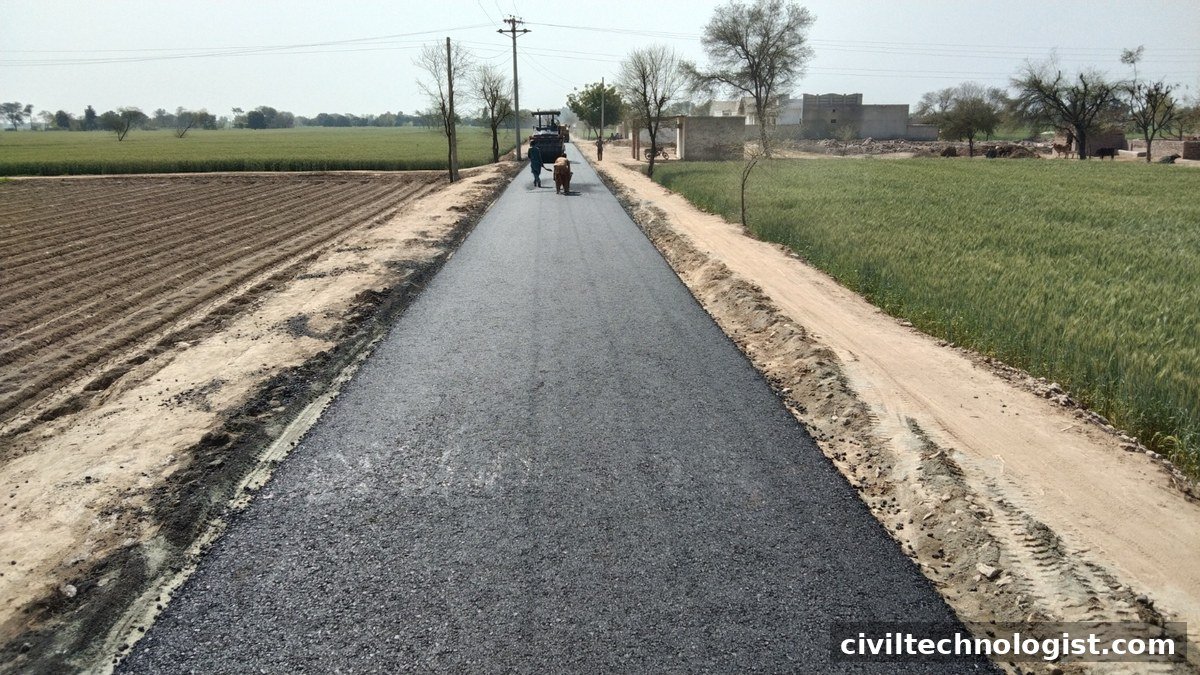

Fresh asphalt carpet on a rural road — a flexible pavement surface laid over granular base layers.
Flexible Pavement
- Built of layers — surface course, base course, sub-base, subgrade — each weaker than the one above.
- Wheel loads are transferred grain to grain through the layers, spreading as they go down.
- Strength comes from aggregate interlock, particle friction, and cohesion.
- Designed per IRC 37 (India/Pakistan practice) using empirical and mechanistic methods.
Rigid Pavement
- Built around a concrete slab with high flexural strength, laid over a base/sub-base.
- The slab acts as a beam, spreading wheel loads over a wide area of the subgrade by slab action.
- Temperature changes induce curling stresses in the slab — joints (expansion, contraction, construction) are essential.
- Designed per IRC 58 using elastic (Westergaard) theory.
Which Road for Which Situation?
- Heavy intercity freight corridor: flexible pavement, asphalt over WMM — economical to build and easy to rehabilitate.
- Toll plaza / intersection / bus terminal: rigid concrete — resists rutting under slow, heavy, channelised loads.
- Rural link road, limited budget: TST/DST over a granular base — the workhorse of Pakistan’s rural network.
- Village track: gravel or WBM — maintainable with local labour and materials.
Classification by Material — What Each Road Is Made Of
The table above gives the short version. Each material suits a different budget, traffic level and place — and each has a clear trade-off.
Earthen Roads
An earthen road is natural soil, shaped to a camber and compacted so rainwater runs off to the sides. It is the cheapest road to build, needs no imported material, and can be made and repaired with local labour — which is why it is still used for village tracks and farm access. Its weakness is weather: it turns dusty in dry months, muddy and rutted in rain, and can become impassable after heavy monsoon rain until it is reshaped.
Gravel Roads
A gravel road adds a compacted layer of gravel over the shaped earth. It drains better than bare soil, gives a firmer surface in wet weather, and can carry light vehicles, tractors and occasional trucks, so it is a common choice for rural access roads. The trade-off is a loose, dusty surface: stones are thrown up by tyres, corrugations form, and the road needs regular grading and fresh gravel to stay usable.
WBM Roads
WBM — water bound macadam — is made of layers of crushed stone, compacted with water and filled with stone dust so the pieces lock together. It can serve as the wearing surface of a low-traffic road, or as the base under a bituminous surfacing. It is strong, uses local stone and needs no bitumen, which keeps its cost down. Its drawbacks are a rough, dusty ride, steady wear under traffic and regular maintenance.
Bituminous Roads
A bituminous (asphalt) road has hot-mix bituminous layers — a binder course and a wearing course — laid over a granular base, or a bitumen surface dressing (TST/DST) over the same base. It is smooth, dust-free and quick to build, and it can be repaired overnight by patching or overlaying — which is why it is the standard surfacing for highways and urban roads. Its weaknesses are that bitumen softens in extreme heat and ruts under slow, heavy loads, and that it needs periodic resurfacing.
Concrete (Rigid) Roads
A concrete road uses a cement concrete slab as its wearing surface, laid over a base and sub-base. The slab spreads wheel loads over a wide area, so it stands up to heavy, slow-moving traffic that would rut asphalt, resists fuel and oil spills, and lasts for decades with little more than joint maintenance. The price is a much higher initial cost, careful curing and joints, a noisier ride, and slow, expensive repairs when a slab cracks or settles.
Pavement Layers — From the Ground Up
A road is not just its blacktop. Under the surface is a stack of layers, each doing a different job, and a weakness in any layer shows up on the surface sooner or later. From the bottom up, they are:
1. Subgrade
The subgrade is the natural soil the road is built on, shaped and compacted to the required level. It is the foundation of the whole pavement: if it is weak or wet, the road above it will settle, crack and rut, no matter how good the upper layers are. Good drainage and proper compaction matter most here.
2. Sub-Base
The sub-base is a layer of granular material — gravel, crushed stone or sand — laid directly on the subgrade. It spreads wheel loads over a wider area, drains water away from the foundation and protects the subgrade from damage. It is weaker and cheaper than the base above it.
3. Base Course
The base course is the main structural layer of the pavement. Built of crushed stone, WBM or wet mix macadam (WMM), it carries most of the traffic load and spreads it to the sub-base below. Its strength and thickness decide how much traffic the road can take.
4. Surface Course
The surface course is the layer you drive on — the bituminous wearing course of a flexible pavement, or the concrete slab of a rigid one. It gives a smooth, skid-resistant ride and keeps water out of the layers below. When it wears out, it can be resurfaced without rebuilding the whole road.
Flexible vs Rigid Pavement at a Glance
For a quick decision on site, these five points usually settle it:
| Point | Flexible pavement | Rigid pavement |
|---|---|---|
| Load transfer | Load spreads grain to grain through the layers | The slab spreads load over a wide area |
| Initial cost | Lower | Higher |
| Maintenance | More frequent — patching and overlays | Less frequent — mainly joint resealing |
| Design life | Shorter, typically 10–15 years | Longer, typically 20–30+ years |
| Typical examples | Highways and urban roads | Toll plazas, intersections, bus terminals and container yards |
Roads by Traffic and Location — Who Builds and Maintains Them in Pakistan
The same road can also be classified by how much traffic it carries and where it sits — and in Pakistan, that decides who is responsible for building and maintaining it.
National Highways
National highways are the N-series roads — such as the N-5 between Karachi and Peshawar — that carry long-distance, intercity traffic. They are built and maintained by the National Highway Authority (NHA), under the federal Ministry of Communications, which also looks after motorways, expressways and strategic roads.
Provincial Highways
Provincial highways connect districts and towns to the national network. They are the responsibility of the provincial Communication and Works (C&W) / Highways Departments in each province, which build them and carry out their maintenance and rehabilitation.
District and Rural Roads
District and rural roads — including farm-to-market roads and village link roads — carry local traffic and connect villages to nearby towns and markets. They are built and maintained by district governments and local government bodies, usually to a lower standard, often as gravel, WBM or TST roads.
Urban Streets
Urban streets are the roads inside cities and towns: main avenues, neighbourhood streets and lanes. They are maintained by municipal corporations, municipal committees and, in cantonment areas, cantonment boards — along with their drains, footpaths and street lighting.
Common Road Problems and Their Maintenance
Most road failures start small, and catching them early is far cheaper than rebuilding. Each defect points to a cause, and each cause has a standard fix.
| Problem | Usual cause | Usual fix |
|---|---|---|
| Potholes | Water enters through cracks, weakens the base, and traffic breaks the surface apart | Cut out the damaged area and patch it with bituminous material; seal cracks before water gets in |
| Rutting | Repeated heavy wheel loads, or bitumen softening in high temperatures | Mill off the rutted layer and overlay it; use a stiffer mix, or concrete where traffic is slow and heavy |
| Cracking | Ageing of bitumen, temperature movement, a weak base, or overloading | Seal cracks early; for wide cracking, overlay the surface and strengthen the base |
| Edge breaking | Weak or missing shoulders, water at the edge, and vehicles running off the pavement | Rebuild the edge, provide a paved shoulder, and improve side drainage |
Frequently Asked Questions
What is the difference between a highway and a motorway?
A motorway is a fully access-controlled highway — no intersections, no slow traffic, no direct property access. A highway (in Pakistani usage, an N-series national highway) is a major through road that may still pass through towns and allow direct access.
Which lasts longer, flexible or rigid pavement? Rigid pavements generally last longer (20–30+ years) with lower maintenance, but cost more to build. Flexible pavements are cheaper initially but need periodic resurfacing.
What is TST in road construction? Triple Surface Treatment — three alternate applications of bitumen spray and aggregate chips. It is a low-cost bituminous surfacing widely used on rural and provincial roads.
Who maintains national highways in Pakistan? The National Highway Authority (NHA), under the federal Ministry of Communications, maintains national highways, motorways, expressways, and strategic roads.
What is the difference between flexible and rigid pavement? A flexible pavement transfers wheel loads grain to grain through layers of bitumen and aggregate and deflects slightly under load; a rigid pavement uses a concrete slab that spreads the load over a wide area and hardly deflects. Flexible pavements cost less to build but need more maintenance, while rigid pavements cost more and last longer.
Which type of road is best for heavy traffic? For heavy, fast-moving traffic on a long corridor, a bituminous (flexible) road is usually chosen because it is economical and easy to repair. For heavy, slow and channelised traffic — at toll plazas, intersections, bus terminals and container yards — a concrete (rigid) road is best, because it does not rut under standing loads.
What is WBM in road construction? WBM is water bound macadam: layers of crushed stone compacted with water and filled with stone dust so the pieces lock together. It is used as the wearing surface of low-traffic rural roads and as the base course under bituminous surfacing on better roads.
How long does a bituminous road last? A well-built bituminous road typically serves for about 10–15 years before major rehabilitation, but it needs regular maintenance in between — crack sealing, patching and a resurfacing or overlay every few years. Its actual life depends on traffic, drainage, the quality of the base and how well it is maintained.
Final Thoughts
“Types of roads” is not a list to memorise — it is three different questions: what the road is for, what it is made of, and how its pavement carries load. Answer those three and you can classify any road in the world, from a farm track to a motorway.
For the structural layer beneath the surface, see base course construction — materials, specifications, and methods. For horizontal curves, read superelevation in roads.
Written by Mohsin Raza Adil — BSc Civil Engineering Technologist (NTC-registered), Pakistan.
