Maximum Specific Gravity of Bituminous Mix (AASHTO T 209 / ASTM D2041 Rice Test)

Every asphalt mix design and every density check on a paved road depends on one reference number: the theoretical maximum specific gravity (Gmm) of the loose mix. The test that produces it — AASHTO T 209 / ASTM D2041, universally called the Rice test — is short, simple, and easy to get wrong if you rush the vacuum step.

This guide explains what Gmm means, how the Rice test is performed with a vacuum pycnometer, the calculation with a full worked example, and how Gmm turns into the air-voids number that actually controls pavement acceptance.

What Is Gmm and Why Does It Matter?

The theoretical maximum specific gravity (Gmm) is the specific gravity of a bituminous mixture as if it contained zero air voids — the aggregate and binder only, with every air pocket removed. It is the ceiling: no compacted pavement can ever be denser than Gmm.

Gmm matters because:

• Air voids calculation — the in-place air-void content of a compacted mix is computed from Gmm and the bulk specific gravity (Gmb). Without an accurate Gmm, the air-void number is fiction.
• Compaction control — field density is often expressed as a percentage of Gmm (percent of theoretical maximum density), which is the acceptance criterion on many projects.
• Mix consistency checks — a drifting Gmm during production signals changes in binder content or aggregate gradation before they show up as pavement defects.
• Target density — it provides the reference density that rollers on site are trying to approach.

Gmm is always greater than Gmb (the bulk specific gravity of the compacted mix), because the compacted mix still contains air voids. If your lab ever reports Gmb > Gmm, one of the two tests is wrong.

Governing Standards

• AASHTO T 209 — Theoretical maximum specific gravity (Gmm) and density of asphalt mixtures.
• ASTM D2041 — Standard test method for theoretical maximum specific gravity and density of bituminous paving mixtures (the ASTM equivalent; the procedure is essentially identical).

Apparatus

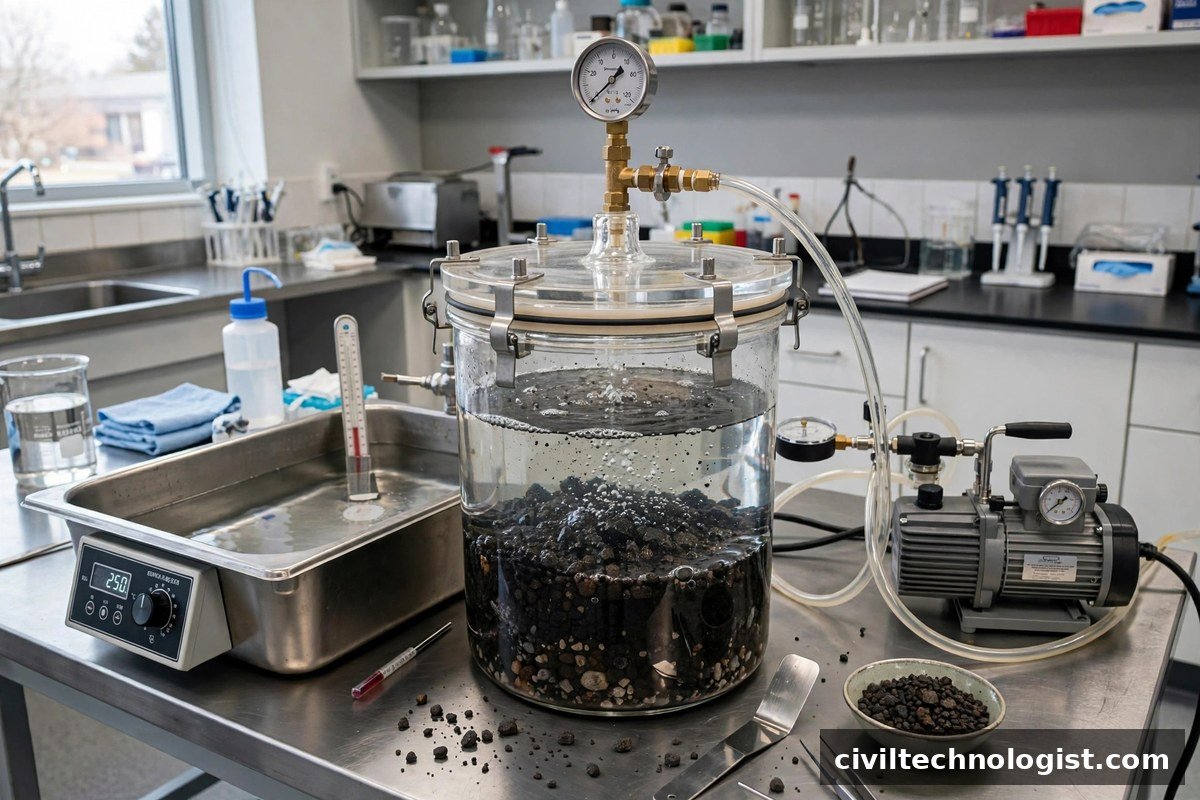

1. Vacuum pycnometer (or vacuum bowl) — a stout container with an airtight lid and vacuum connection, calibrated (standardized) with water at 25 °C.
2. Vacuum pump and gauge — capable of holding a partial vacuum of 4.0 ± 0.6 kPa (30 ± 5 mm Hg) residual pressure.
3. Balance — readable to 0.1 g.
4. Water bath and thermometer — to hold the test at 25 °C.
5. Mechanical agitation device or a sturdy table — for shaking the container during vacuuming.

Sample Preparation

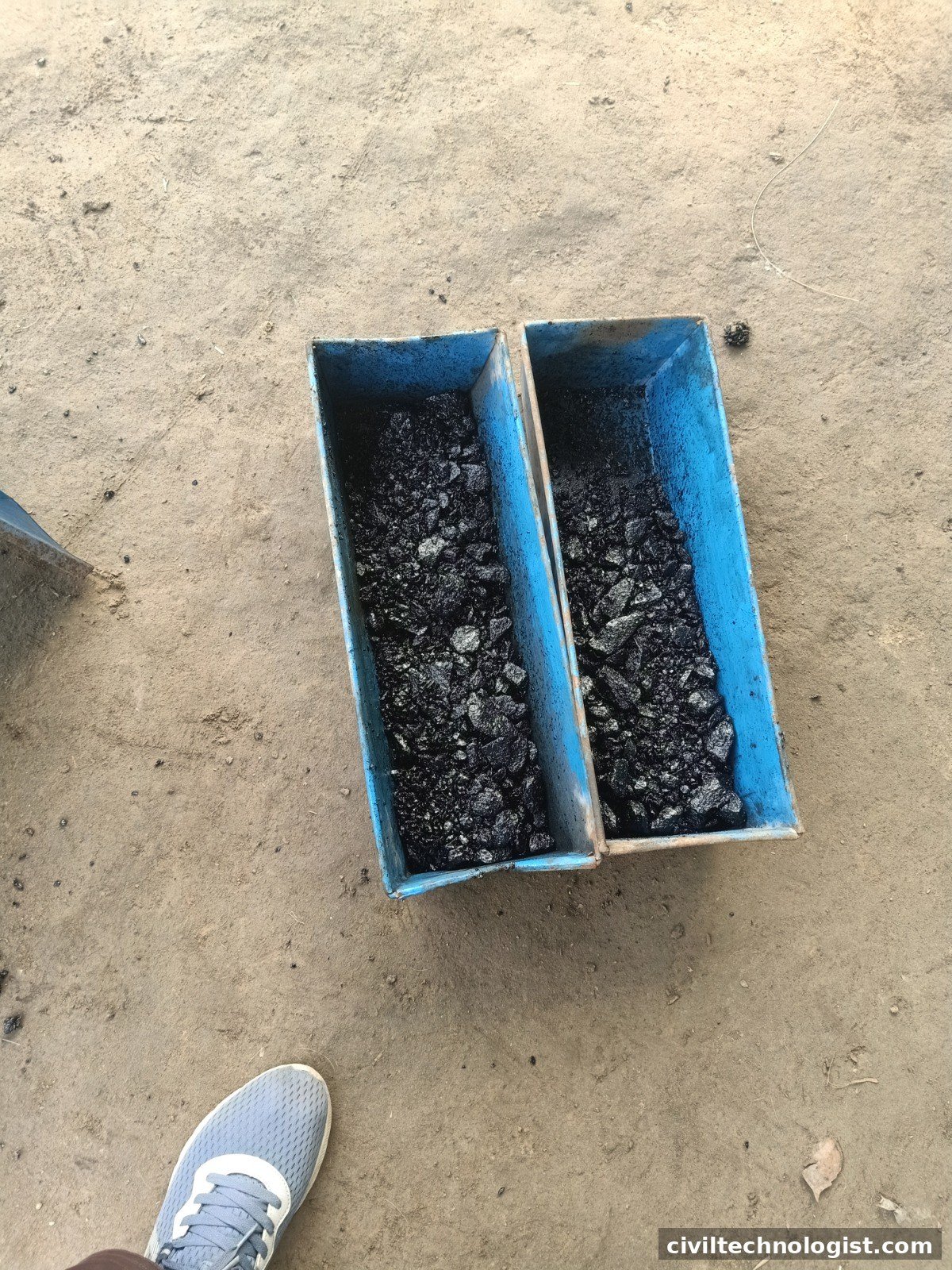

• Obtain a representative sample of loose bituminous mixture (from the plant or the paver) and reduce it by quartering.
• Spread it out, let it cool, and separate the particles by hand so no lumps are larger than about 6.3 mm (1/4 in.) — but do not fracture the aggregate.
• Minimum sample mass depends on the nominal maximum aggregate size: about 1500 g for 12.5 mm mixes, 2000 g for 19 mm mixes, 2500 g for 25 mm mixes, and more for larger stone.
• Oven-dry the sample to constant mass if it is not already dry.

Test Procedure (Step by Step)

1. Weigh the dry sample in air and record the mass as A.
2. Place the sample in the tared vacuum container and add water at approximately 25 °C until the sample is covered by about 25 mm of water.
3. Seal the lid and apply vacuum — a partial vacuum of 4.0 ± 0.6 kPa (30 ± 5 mm Hg) — for 15 ± 1 minutes.
4. Agitate the container during vacuuming, either continuously with a mechanical shaker or manually at intervals, to help entrapped air escape.
5. Release the vacuum slowly, then fill the container completely with water at 25 °C, taking care not to trap new air.
6. Weigh the container + sample + water in air and record the mass as E.
7. Use the previously standardized mass of the container filled with water only at 25 °C, recorded as D.

Calculation and Worked Example

The theoretical maximum specific gravity is:

Gmm = A / (A + D − E)

where:

• A = mass of the dry loose sample in air (g)
• D = mass of the pycnometer filled with water at 25 °C (g)
• E = mass of the pycnometer + sample + water at 25 °C (g)

Worked example: A loose dense-graded mix sample gives:

• A = 2015.0 g (dry sample)
• D = 8500.0 g (pycnometer + water)
• E = 9748.0 g (pycnometer + sample + water)

Gmm = 2015.0 / (2015.0 + 8500.0 − 9748.0) = 2015.0 / 767.0 = 2.627

The theoretical maximum density at 25 °C is simply Gmm × 997.1 kg/m³ ≈ 2620 kg/m³.

From Gmm to air voids — the number that controls acceptance

Once Gmm is known, the air-void content of the compacted mix follows from its bulk specific gravity (Gmb, measured on compacted specimens per ASTM D2726 or on cores):

Va = (Gmm − Gmb) / Gmm × 100

Worked example: Compacted specimens of the same mix give Gmb = 2.510.

Va = (2.627 − 2.510) / 2.627 × 100 = 0.117 / 2.627 × 100 = 4.5%

Interpretation: 4.5% sits inside the usual 3–5% air-void window for dense-graded mixes. Below ~3%, the mix risks bleeding and rutting; above ~5–8%, the mix becomes permeable to air and water, accelerating oxidation, moisture damage, and cracking.

Common Errors to Avoid

• Inadequate vacuum or too-short vacuum time — leaves air in the sample and inflates Gmm.
• Water temperature drift — the whole test is referenced to 25 °C; apply the temperature correction if you cannot hold it.
• Sample segregation — a non-representative scoop gives a Gmm that does not represent the lot; quarter properly.
• Comparing Gmb and Gmm from different samples — always compute air voids from specimens of the same mix and production lot.

Frequently Asked Questions

Why is it called the Rice test?
It is named after James Rice, who developed the vacuum-saturation procedure for determining the maximum specific gravity of bituminous mixtures.

What is the difference between Gmm and Gmb?
Gmm (AASHTO T 209 / ASTM D2041) is the theoretical maximum specific gravity of the loose mix with zero air voids. Gmb (ASTM D2726) is the bulk specific gravity of the compacted mix, which still contains air voids. Air-void content is calculated from the two together.

What is an acceptable air-void content for asphalt?
Dense-graded mixes are typically designed and accepted at 3–5% air voids (about 4% target at design compaction). Below 3% risks rutting and bleeding; above 5% the mix becomes permeable and ages rapidly.

How often should Gmm be tested during production?
Common practice is at least one Rice test per production day (often one per 500 tonnes or per lot, depending on the agency specification), plus a new Gmm whenever the mix design, binder source, or aggregate source changes.

Final Thoughts

e
The Rice test takes less than an hour, but almost every density and air-void decision on an asphalt project traces back to it. Treat the vacuum step with respect, hold the temperature, and always pair Gmm with a Gmb from the same lot — that single habit keeps the whole compaction-control chain honest.

---

Written by Mohsin Raza Adil — BSc Civil Engineering Technologist (NTC-registered), Pakistan.
