Concrete Temperature Measurements

When you work with concrete, it is now not just about pouring it and waiting. Checking the temperature of the concrete blend could be very vital. In this newsletter, we will give an explanation for in an smooth way why measuring the temperature subjects and how to do it right. So, by using the end, you may apprehend why it’s essential and the way to do it efficaciously.

Why is Concrete Temperature Measurement Important?

Think of concrete like a cake. To make it good, you have to cook it at the perfect heat. The same is true for concrete. Let’s understand why checking its temperature is really important:

Strength Matters

The temperature affects how strong your concrete becomes. Getting it right means a more robust and durable end product.

Crack Avoidance

Cracks, undesirable in any concrete masterpiece, may result from incorrect temperatures.

Quality Assurance

Measuring temperature ensures your concrete meets quality standards and project specifications.

How we measure the temperature of concrete

Measuring the temperature of concrete is vital to make sure it treatment plans nicely and achieves the favored energy and durability. Here’s a proof of the way you can measure the temperature of concrete:

1. Embedded Sensors EEmbedded Sensors Embedded sensors are one of the most correct methods to degree the temperature of concrete. Here’s how they work:

  • Placement: Strategically positioning temperature sensors, now and again referred to as thermocouples or temperature probes, inside the concrete mixture is finished before pouring. It’s essential to distribute them evenly to effectively capture temperature differences.
  • Data Collection: These sensors continuously record the temperature as the concrete cures. The facts is normally collected via wires linked to a information logger or tracking system.
  • Accuracy: Embedded sensors offer precise temperature readings at numerous depths in the concrete, allowing you to display temperature gradients.

2. Surface Temperature Measurement Surface Temperature Measurement Surface temperature measurements are faster and less complicated however can be less correct than embedded sensors. Here’s a way to measure the floor temperature:

  • Tools: Use non-touch infrared thermometers or thermal imaging cameras to degree the concrete’s surface temperature.
  • Procedure: Point the thermometer or digicam on the concrete surface, and it’ll provide an instantaneous temperature studying. For thermal cameras, they can display temperature variations in different colors.
  • Limitations: Surface measurements may not seize temperature variations deep within the concrete, however they may be beneficial for short exams and quality tests.

3. Maturity Testing: Maturity testing is a way that estimates the concrete’s electricity and adulthood primarily based on temperature facts. Here’s how it’s performed:

  • Placement: In specific locations and depths, concrete has temperature sensors installed within it.
  • Data Collection: While the concrete is getting more potent, we maintain checking its temperature frequently.We utilize the temperature readings at the side of the elapsed time to determine the maturity or stage of improvement of the concrete.
  • Strength Estimation: By evaluating the calculated maturity to a adulthood-energy dating developed for the precise concrete mix, you may estimate the concrete’s power.

4. Wireless Monitoring Modern technology allows for wireless sensors to be placed within or on the surface of the concrete for remote monitoring:

  • Installation: Wireless sensors are strategically positioned inside the concrete or on its surface, and they transmit actual-time temperature statistics to a relevant tracking machine.
  • Advantages: This technique reduces the need for manual measurements, presents actual-time facts, and may be particularly useful for massive construction initiatives.

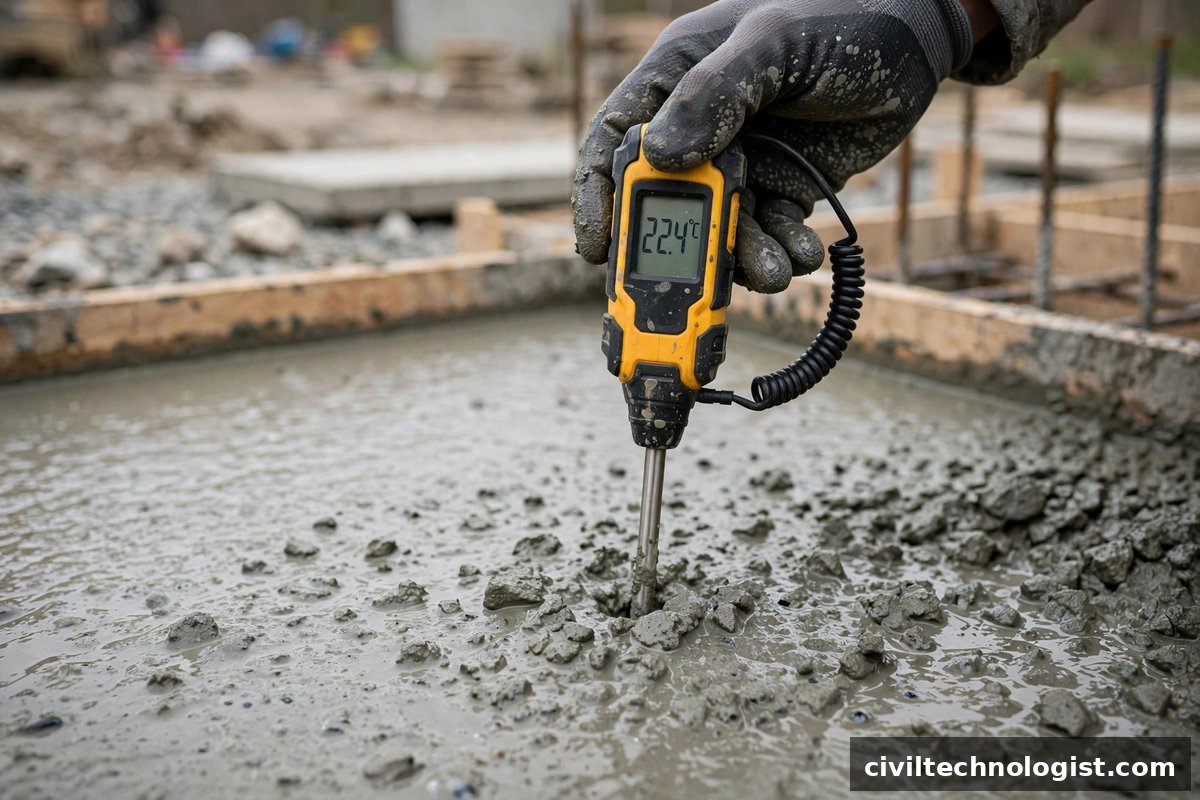

5. Manual Measurements Traditional methods involve manually measuring the concrete’s temperature using handheld thermometers or thermocouples:

  • Tools: Use handheld thermometers or thermocouples, which can be temperature sensors with a show unit.
  • Procedure: Insert the sensor into the concrete at the desired intensity and watch for it to stabilize.
    The display unit will show the temperature reading.
  • Limitations: Manual measurements can be labor-extensive and won’t provide as complete records as computerized systems.

Concrete Temperature Limits

The specific temperature limits for concrete can vary depending on the application and the stage of concrete placement or curing. These are some common temperature limits you can find in ASTM standards and industry guidelines.

(Check Concrete Temperature Test , Procedure , Objective Concusion)

ASTM Concrete Temperature Limits

ASTM C1064-86 recommends maintaining the temperature of ready-combined concrete within more than a few 50°F to 90°F (10°C to 32°C) during delivery. It’s vital to observe that this range isn’t always a strict limit and might vary based totally on project desires and neighborhood situations.

Hot Weather Concrete Temperature

There is often a limit on the highest perfect temperature for concrete in the course of placement, usually around 90 to 95°F (32 to 35°C).

Cold Weather Concrete Temperature

For cold weather conditions, the minimum concrete temperature on the time of placement is regularly unique to be above 40°F (4°C). In extremely cold situations, it can be vital to take additional precautions, such as heating the substances.

Mass Concrete Temperature

In mass concrete placements (for instance, with big structural parts like dams or bridge piers), there might be rules that set lower temperature limits to manage heat production and decrease the chance of thermal cracking.In such cases, the maximum temperature might be specified to be around 160°F (71°C).

FAQ  Questions and Answers

How is concrete temperature measurements?

Various methods are typically used to measure concrete temperature. These methods include the use of embedded sensors like thermocouples, tools for measuring surface temperature such as infrared thermometers, maturity testing, wireless monitoring systems, or manual measurements conducted with handheld thermometers or thermocouples. The choice of method depends on the project’s requirements and the level of accuracy needed for monitoring the concrete’s temperature during curing.

What device is used to Measure the temperature of concrete?

Commonly used devices for measuring the temperature of concrete consist of thermocouples, infrared thermometers, thermal imaging cameras, adulthood sensors, and guide thermometers. The choice depends on the specific project and temperature monitoring needs.

Why do we measure concrete temperature?

Measuring concrete temperature ensures proper curing and quality. It affects strength development, crack prevention, and adherence to project specifications, making temperature measurement crucial for construction durability and safety.

Does concrete heat up when curing?

Yes, concrete undergoes an exothermic chemical response known as hydration at some stage in curing, which generates heat. This heat buildup is a natural a part of the curing manner and is vital for concrete to benefit electricity and durability. However, in a few cases, immoderate warmness can cause issues including thermal cracking, specifically in mass concrete structures. Temperature monitoring and manage are important to ensure that the heat generated throughout curing does no longer cause any adverse effects at the concrete’s integrity.
