Concrete is tested twice in its life: once while it is fresh — when you can still fix problems — and once after it hardens, when the results decide whether the structure is accepted. This article is the map, not the territory: a complete list of the standard tests in both groups, each with its purpose and a one-line description, linked to the full procedure articles where they exist.
For the science behind what these tests measure, see properties of fresh and hardened concrete.
Fresh Concrete Tests
Fresh tests are done at the mixer or at the point of placement. They answer one question: is this batch fit to place?
| Test | Purpose | One-line method | Full article |
|---|---|---|---|
| Slump test | Workability / consistency | Measure how far a cone of concrete slumps after the mould is lifted | Slump test |
| Flow table test | Workability of flowing concrete | Drop the table 15 times and measure the spread diameter of the concrete pat | Flow table test |
| Vee-Bee test | Workability of stiff, low-slump mixes | Time how long vibration takes to remould a cone into a cylinder | Vee-Bee test |
| Compaction factor test | Workability by degree of compaction | Ratio of partially compacted to fully compacted concrete weight in a standard apparatus | Full procedure article in preparation |
| Bleeding test | Water gain on the surface | Collect and measure bleed water rising from a test specimen over time | Bleeding test |
| Air content test (pressure method) | Freeze-thaw durability, air-entrained mixes | Pressure meter measures air voids in the fresh mix (ASTM C231) | Full procedure article in preparation |
| Concrete temperature | Hot/cold weather concreting control | Thermometer reading of fresh concrete at placement | Temperature limits |
| Setting time (penetration) | Initial and final set | Penetration resistance of mortar sieved from the mix (ASTM C403) | Full procedure article in preparation |
Notes from practice
- Slump is the site workhorse — quick, cheap, and understood by every foreman. But it is a crude measure: two mixes with the same slump can behave very differently in the pump or the formwork.
- Vee-Bee and compaction factor suit the stiff mixes used in pavements and precast work, where the slump cone barely moves.
- Bleeding and temperature are the tests people skip and later regret — one predicts surface defects, the other controls cracking in extreme weather.
- For self-compacting concrete, the standard fresh tests are replaced by flow-based tests: slump-flow, V-funnel, L-box, and J-ring (see the SCC test series on this site).
Hardened Concrete Tests
Hardened tests are done on specimens or on the structure itself. They answer a harder question: did the concrete achieve what the design assumed?
| Test | Purpose | One-line method | Full article |
|---|---|---|---|
| Cube compressive strength | Acceptance of concrete grade | Crush 150 mm cubes at 7/28 days; strength = failure load ÷ area | Compressive strength |

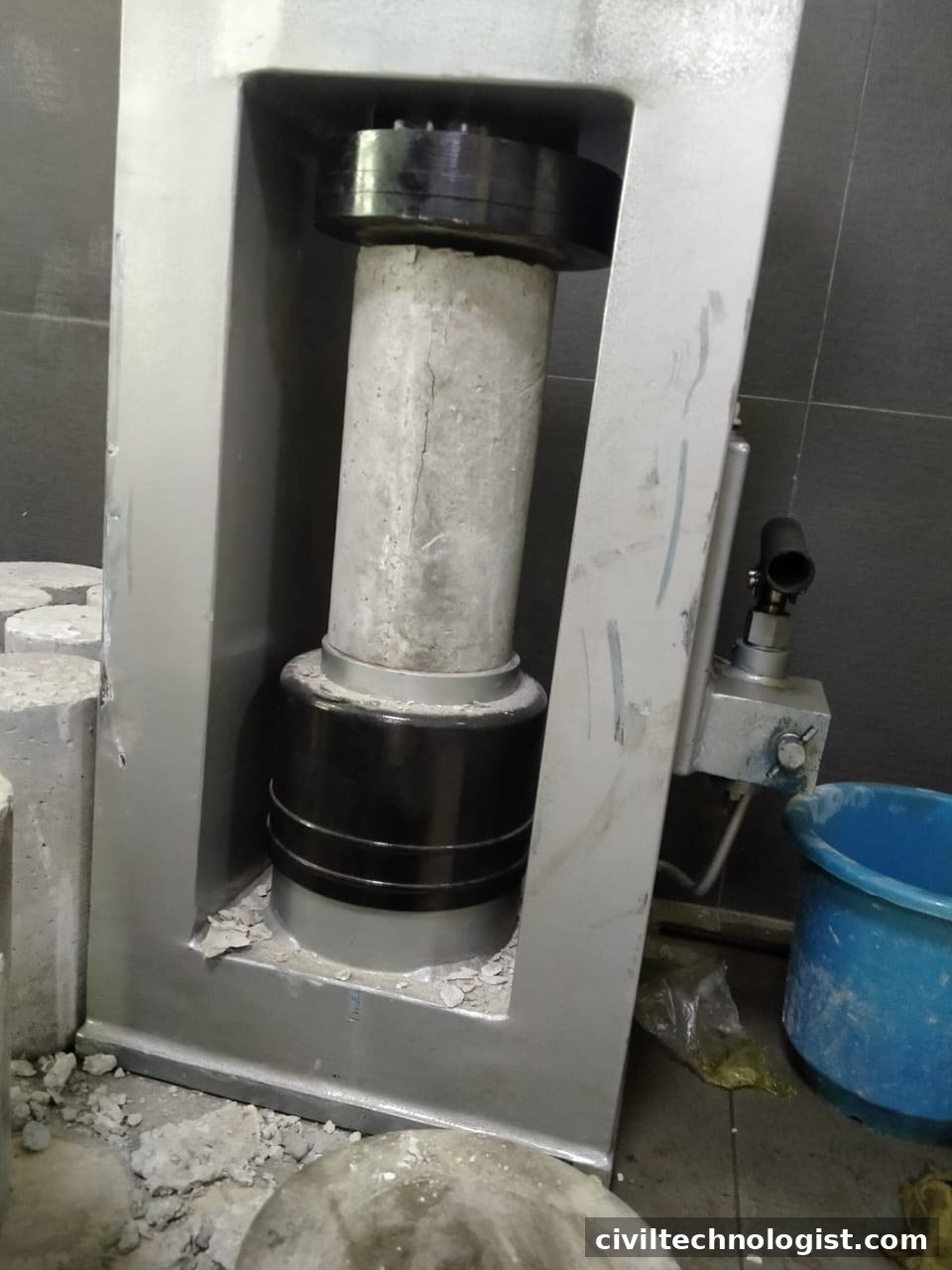

| Cylinder compressive strength | Acceptance (ASTM/ACI practice) | Crush 150 × 300 mm cylinders; ~0.8 × cube strength | Compressive strength |
| Split tensile strength | Indirect tensile strength | Load a cylinder diametrically until it splits along its length | Full procedure article in preparation |
| Flexural strength (modulus of rupture) | Tensile strength for pavements | Load a beam specimen at third points until it breaks | Full procedure article in preparation |
| Rebound hammer (Schmidt) | Estimate in-situ strength, NDT | Spring-driven mass rebounds off the surface; rebound number correlates with strength | Full procedure article in preparation |
| Ultrasonic pulse velocity (UPV) | Uniformity, voids, cracks — NDT | Time an ultrasonic pulse crossing the concrete; velocity reflects quality | Full procedure article in preparation |
| Core test | True in-situ strength | Drill, trim, and crush cores from the structure (ASTM C42) | Full procedure article in preparation |
| Permeability / water penetration | Durability | Measure depth of water penetration under pressure (EN 12390-8) | Full procedure article in preparation |
Notes from practice
- Cubes vs cylinders is a regional choice — 150 mm cubes under BS/IS practice, 150 × 300 mm cylinders under ASTM/ACI. The 0.8 conversion factor between them is covered in the compressive strength article.
- NDT methods (rebound hammer, UPV) estimate strength indirectly. They are excellent for comparing areas of a structure and locating suspect zones, but they do not replace crushed specimens for acceptance.
- Cores are the last word when strength results are disputed — drilled from the actual structure, corrected for aspect ratio and reinforcement, and judged against their own acceptance criteria.
Which Tests for Which Job?
- Every pour, every day: slump, temperature, and cube/cylinder casting. Non-negotiable.
- Pavements and precast: add vee-bee or compaction factor for the stiff mixes involved.
- Mass concrete / extreme weather: temperature monitoring and setting time become critical.
- Disputed or failed results: rebound hammer and UPV for investigation, cores for the final verdict.
- Durability specifications: permeability and air content where the design demands them.
Frequently Asked Questions
What is the difference between fresh and hardened concrete tests?
Fresh tests check workability and placability before the concrete sets; hardened tests verify strength and durability after it gains strength.
Which concrete test is most important?
The compressive strength test — it is the acceptance test that decides whether a concrete grade (like M25 or C30) was actually achieved.
Can NDT replace cube crushing?
No. Rebound hammer and UPV are investigation tools. Acceptance is based on standard crushed specimens — or on cores when results are challenged.
How many cubes should be cast per pour?
Practice varies by code and project size; a common site rule is at least one set (3 cubes) per day’s pour or per 50 m³, with sets tested at 7 and 28 days. Always follow the project specification.
Why test both slump and temperature?
They catch different failures: slump catches wrong water content and workability problems; temperature catches hot-weather flash set and cold-weather freezing risk.
Final Thoughts
Testing is not paperwork — it is the feedback loop that keeps concrete honest. Run the fresh tests so bad batches never reach the formwork, crush the specimens so the design assumptions get verified, and keep the NDT tools ready for the day the numbers disagree. This list is your map; the linked articles are the detailed routes.
Written by Mohsin Raza Adil — BSc Civil Engineering Technologist (NTC-registered), Pakistan.
