L-Box Test for Self-Compacting Concrete SCC
The L-Box test, which evaluates the passing ability and flow characteristics of Self-Consolidating Concrete (SCC), utilizes a standardized method. It provides valuable information about the ability of SCC to flow through confined spaces and fill complex formwork without the need for external consolidation.
The test involves measuring the time. taken for the concrete to flow and the spread of the concrete in the horizontal section of the L-Box apparatus. The utilization of the L-Box test ensures the concrete’s suitability for specific applications, guiding mix design optimization and widely evaluating the workability and performance of SCC in construction projects.
L Box Test Value Limits
However, as a general guideline, we often desire the passing ability index (PAI) values in the L-Box test to remain above 60% to ensure that Self-Consolidating Concrete (SCC) exhibits adequate flow and filling capacity. Higher PAI values indicate better passing ability and flowability.
It’s worth noting that the specific PAI requirements can vary based on the intended application of the SCC, the complexity of the formwork, and other project-specific factors. Therefore, it is crucial to consult the relevant standards, project specifications, or design documents to determine the specific standard values or acceptance criteria for the L-Box test in a given context.
L-box test is used to determine
The L-Box test serves as a standardized technique for precisely evaluating the passing ability and flow properties of Self-Compacting Concrete (SCC). It gauges SCC’s capacity to navigate through restricted spaces and intricately fill complex formwork without any external assistance. The resulting Passing Ability Index (PAI) serves as a quantitative measure of SCC’s flowability and passing ability, offering valuable data for mix design optimization and ensuring its suitability for diverse construction applications.
History of the L-Box Test
Japanese researchers and engineers, who were pioneers inside the field of Self-Compacting Concrete (SCC), evolved the L-Box test in Japan. Japan has been at the leading edge of SCC research and innovation, given its huge use of SCC in creation initiatives, specifically in densely populated urban areas in which the green waft and filling residences of SCC are exceptionally advantageous. Over time, the L-Box test has become a globally recognized method for assessing SCC’s passing ability and flow characteristics.
Over time, international organizations and standards bodies such as ASTM International and CEN (European Committee for Standardization) played pivotal roles in formalizing and standardizing the L-Box test procedure, making it an essential tool for evaluating SCC in construction applications worldwide.
Determine the L-Box Test for Self-Compacting Concrete SCC
Significance
The L-Box test, widely recognized and standardized, evaluates the flowability and passing ability of Self-Consolidating Concrete (SCC). SCC is a highly fluid and workable concrete mix that can flow and fill intricate forms without the need for mechanical consolidation. The L-Box test helps assess the robustness and filling capacity of SCC, ensuring its suitability for various construction applications.
Standard
The L-Box test is finished consistent with ASTM C1621/C1621M-16, “Standard Test Method for Passing Ability of Self-Consolidating Concrete by using J-Ring.
- EN 12350-11: Testing fresh concrete – Part 11: Self-compacting concrete – L-box test.
- BS EN 12350-10 is part of a sequence that specializes in trying out fresh concrete. It especially addresses self-consolidating concrete, ensuring its exceptional and overall performance with out the want for external vibration throughout creation.
- ACI 237R-07, a record by means of the American Concrete Institute, provides hints for self-consolidating concrete. Published in 2007, it offers recommendations on production and utilization, emphasizing the concrete’s ability to glide and fill formwork with out the need for vibration, making sure consistent great in production.
- Indain popular IS 15902:2012,
Scope
The scope of this experiment is to determine the passing ability of SCC using the L-Box test.It includes assessing the flowability of SCC through an L-shaped field apparatus, measuring the unfold of concrete, and reading the consequences to evaluate the suitability of the combination.
Aim
The Aim of this experiment is to evaluate the flowability and passing ability of SCC using the L-Box test, providing treasured information about its workability and capability to fill complicated formwork.
Objectives
(a). To prepare a consistent and representative SCC mix.
(b). To conduct the L-Box test on the SCC sample.
(c). To measure and record the spread of the concrete in the L-Box apparatus.
(d). To analyze the test results and draw conclusions about the SCC’s passing ability.
(e). To provide recommendations for adjustments in the mix design or process, if necessary.
Apparatus

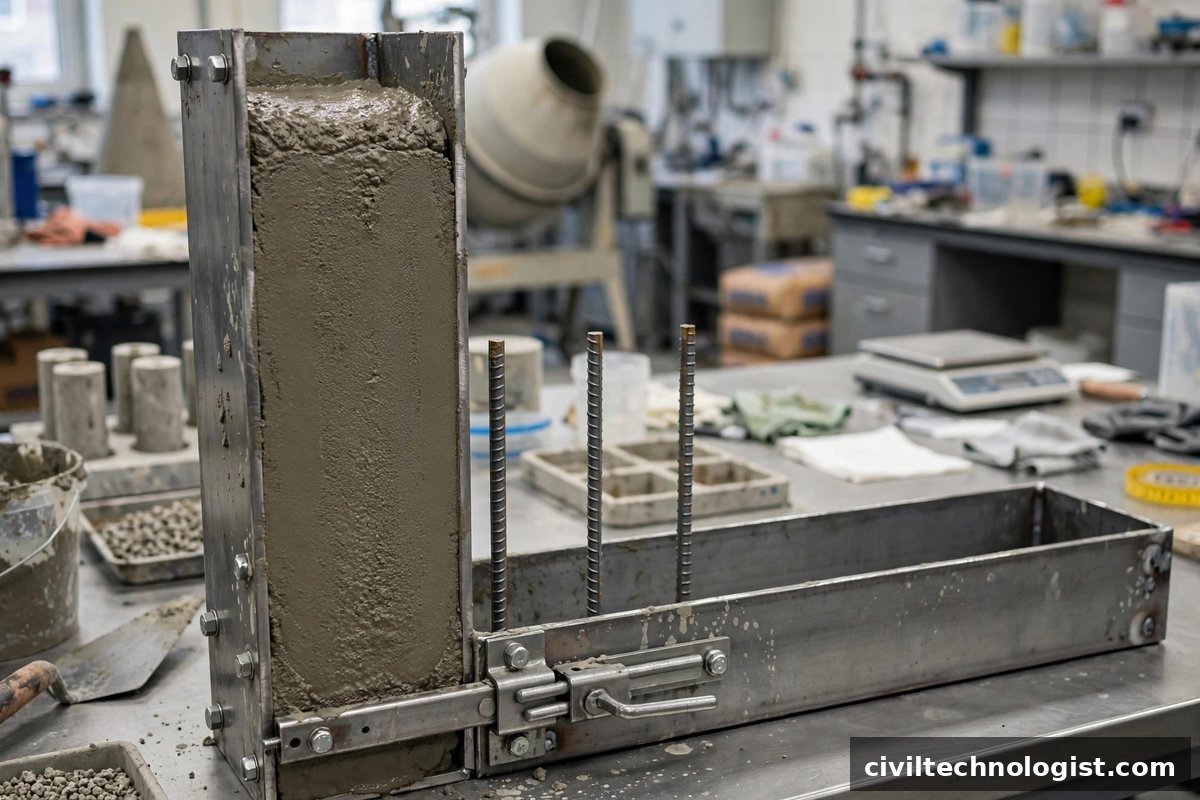

(a). L-Box apparatus: Consisting of a vertical phase (70 cm in peak) and a horizontal segment (50 cm width and 40 cm top) organized in an L-form.
(b). Tamping rod: A 16 mm diameter rod for consolidating (Compacting) the SCC.
(c). Stopwatch: For measuring the time of flow.
(d). Measuring tape: For measuring the spread of concrete.
Theory
The L-Box test measures the passing ability of SCC by assessing the flow of concrete through a confined section of the L-Box apparatus. The SCC sample is poured into the vertical section of the L-Box, and we record the time it takes for the concrete to flow from the vertical section to the horizontal section. Additionally, we measure the spread of the concrete in the horizontal section. These parameters provide insights into the filling capacity and stability of the SCC mix.
Procedure
- Set up the L-Box apparatus on a stage floor and ensure it’s far smooth and unfastened from any particles.
- Prepare a representative pattern of Self-Consolidating Concrete (SCC) consistent with the desired mix design.
- Measure the peak of the vertical phase of the L-Box equipment (H1) the usage of a measuring tape and document the fee.
- Pour the SCC into the vertical section of the L-Box apparatus, ensuring it is uniformly distributed.
- Gently remove any excess concrete from the top of the vertical section using a straightedge or trowel.
- Open the gate at the bottom of the vertical section, allowing the concrete to flow into the horizontal section.
- Allow the concrete to flow freely without any external disturbances or vibration.
- Once the concrete flow has ceased, measure the peak of the concrete filling the horizontal section of the L-Box apparatus (H2) using a measuring tape and record the cost.
- Calculate the passing capacity index (PAI) the usage of the subsequent formula: PAI = (H2 / H1) × 100
- Repeat the test with multiple samples of SCC to obtain reliable and representative results.
- Analyze the PAI values obtained and compare them to the specified requirements or acceptance criteria for passing ability. Assess the performance of the SCC mix based on the calculated passing ability index.
- Draw conclusions regarding the flowability and passing ability of the SCC based on the PAI results.
- Provide recommendations for adjustments in the mix design or production process if necessary, aiming to achieve the desired passing ability for the SCC.
Calculation
a. Calculate the average time taken for the concrete to flow from the vertical to the horizontal section.
b. The formula for calculating the passing ability index is as follows:
PAI = (H2 / H1) × 100
Where
H1 is the height of the vertical section of the L-Box apparatus (measured in centimeters or inches).
H2 is the height of the concrete filling the horizontal section of the L-Box apparatus (measured in centimeters or inches).
L Box Test Results
Passing Ability Index (PAI): Assuming the height of the vertical section (H1) is 40 cm, and the height of the SCC filling the horizontal section (H2) is measured as 30 cm.
Using the formula: PAI = (H2 / H1) × 100
PAI = (30 cm / 40 cm) × 100 PAI = 75%
Conclusion
Conclusions about the passing ability and flowability of SCC can be drawn based on the results of the L-Box test. The test helps identify if the SCC mix meets the desired standards and specifications for filling complex formwork.
Recommendations
(a). If the SCC does no longer meet the specified passing capacity necessities, adjustments to the combination layout, inclusive of adjustments in the water-to-cement ratio or the addition of supplementary cementitious materials, can be essential.
(b). Further testing and analysis can be conducted to optimize the SCC mix for improved passing ability.
(c). The L-Box test can be used as a quality control tool during SCC production, enabling adjustments in real time to maintain the desired flow characteristics.
