Properties of Fresh and Hardened Concrete — Tests & Typical Values

Concrete lives two lives. For the first few hours it is a fluid that must flow, fill formwork, and surround steel without separating. After that it is a stone-like solid that must carry load for decades. The two lives are connected: almost every hardened property is decided by what happened while the concrete was fresh.

This guide covers the key properties of fresh concrete and the properties of hardened concrete — what each one means, how it is measured on site and in the lab, and the typical values you should expect before you accept or reject a load.

Fresh Concrete Properties

1. Workability

Workability is the ease with which fresh concrete can be mixed, transported, placed, compacted, and finished without segregation. It is the single most-checked fresh property on site because it controls everything downstream.

Measured by:

• Slump test (ASTM C143 / IS 1199) — the site standard. Typical ranges: 25–50 mm (low, for pavements), 50–100 mm (medium, for reinforced beams and slabs), 100–175 mm (high, for congested sections). Full procedure: slump test guide.

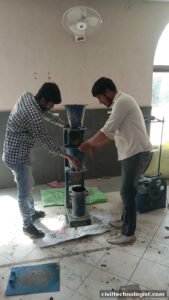

• Compaction factor test — for low-workability mixes where the slump is near zero. Values run from about 0.70 (very stiff) to 0.95 (flowing).
• Flow table test — for high-workability and self-compacting mixes; the spread diameter is measured after standard jolts. Full procedure: flow table test guide.

Practical note: Higher slump is not automatically better concrete. Slump bought with extra water weakens the hardened concrete; slump bought with a superplasticizer does not. Always ask how the workability was achieved.

Workability Tests at a Glance — Which Test, When

One of the most useful properties of fresh concrete to understand is that no single test covers every mix. On site we pick the test that matches the concrete in front of us:

Test	Standard	Typical range	Use it when
Slump test	ASTM C143 / IS 1199	25–175 mm	Normal reinforced concrete — the everyday site test
Compaction factor	IS 1199	0.70–0.95	Stiff, low-slump mixes (near-zero slump)
Flow table	ASTM C124 / IS 1199	Spread in mm	High-workability and self-compacting mixes
Vee-Bee	IS 1199	Seconds	Very stiff mixes, e.g. pavement concrete
Kelly ball	ASTM C360	Penetration in mm	Quick field check as an alternative to slump

Field tip: On a busy pour, run the slump on the first two transit mixers and then one random mixer per hour. If the slump starts dropping through the morning, the concrete is losing workability in transit — ask for a retarder or a plasticizer dose, not a bucket of water.

2. Consistency and Cohesiveness

Consistency is the concrete’s fluidity; cohesiveness is its resistance to segregation — the ingredients staying together as one mass. A good mix is both fluid and cohesive. A mix that flows but leaves stone behind is not workable, whatever the slump says.

How to judge it on site: After the slump cone is lifted, look at the concrete, not just the ruler. A cohesive mix holds its shape with a smooth surface. If stone is exposed on the sides and paste runs off, the mix is harsh or segregating — reject the load or ask the batching plant to correct the grading.

3. Setting Time

Setting is the gradual loss of plasticity as hydration proceeds:

• Initial setting time — the point after which the concrete can no longer be properly compacted (for OPC, not less than 30 minutes per IS 269).
• Final setting time — when the concrete has hardened enough to resist light pressure (for OPC, not more than 600 minutes).

Measured on cement paste with the Vicat apparatus, and on concrete with the penetration resistance test (ASTM C403). Retarding and accelerating admixtures act directly on these times.

Field tip: In hot weather (40°C+ on site, common in Punjab summers), initial setting can arrive much faster than the lab value. Plan smaller pours, keep the concrete shaded in transit, and have the vibrator crew ready before the first mixer arrives — concrete that has started to set must never be re-vibrated.

4. Bleeding

Bleeding is the rise of mixing water to the surface as solids settle. A little bleeding is normal; excessive bleeding leaves a weak, porous top layer (laitance) and plastic-shrinkage cracks.

Measured by ASTM C232 — the accumulated bleed water is drawn off and weighed at intervals. Controlled by proper grading, adequate fines, and correct water content. Full procedure: bleeding test guide.

Worked example — bleeding percentage: A 10-litre sample of fresh concrete bleeds 240 ml of water over 3 hours.

Bleeding % = (bleed water ÷ total mixing water) × 100

If the mix contained 1.9 litres of water in that 10-litre sample: (0.24 ÷ 1.9) × 100 = 12.6% bleeding — high. Anything above roughly 5% deserves attention: check the fines content and water-cement ratio before the next pour.

5. Segregation

Segregation is the separation of coarse aggregate from the mortar — stone settling to the bottom, paste rising to the top. Causes: over-vibration, dropping concrete from height (keep free fall under ~1.5 m), harsh gap-graded mixes, and overdosed superplasticizer. There is no single number for it; you judge it visually and by the uniformity of hardened cores.

Field tip: The most common cause of segregation I see on site is a pump operator or mason letting concrete free-fall from the top of a column. Use a tremie or chute for drops over 1.5 m — it takes two minutes and saves the bottom half of the column.

6. Air Content

Entrained air (deliberate, microscopic bubbles) protects against freeze-thaw; entrapped air (large accidental voids) is simply weakness. Typical target for entrained air: 4–6% in freeze-thaw exposure.

Measured by the pressure method (ASTM C231) with an air meter, or volumetrically (ASTM C173). Every 1% of extra air costs roughly 5% of compressive strength, so this test matters.

Worked example — strength cost of air: A mix designed for 30 MPa shows 7% air instead of the target 4%.

Extra air = 7 − 4 = 3% → strength loss ≈ 3 × 5% = 15%

Expected strength ≈ 30 × 0.85 = 25.5 MPa — the concrete could fail its grade because of air alone. This is why the air meter reading is taken before the pour is accepted.

7. Temperature of Fresh Concrete

Fresh concrete temperature controls setting time and early strength development. Hot concrete sets fast and is prone to plastic shrinkage cracking; cold concrete gains strength slowly and can freeze before setting.

Common limits: keep fresh concrete below about 35°C in hot weather and above 5°C in cold weather, and never let it freeze in the first 24 hours. The detailed limits are in the concrete temperature guide.

8. Unit Weight and Yield

Fresh unit weight (about 2,400 kg/m³ for normal concrete) is checked with a container of known volume (ASTM C138). A low yield means you are getting less concrete than batched — usually a sign of excess air or wrong batch weights. It doubles as a quick quality check on every load.

Worked example — yield check: A 10-litre (0.01 m³) container filled with fresh concrete weighs 23.6 kg.

Unit weight = 23.6 ÷ 0.01 = 2,360 kg/m³ — slightly low versus the design 2,400 kg/m³. The shortfall suggests about 1.5–2% extra air or a batching error. Worth one phone call to the batching plant before the next mixer is accepted.

Why the Properties of Fresh Concrete Decide Site Success

If you remember one thing from the fresh-concrete section, make it this: the properties of fresh concrete are the only properties you can still fix. Once the concrete hardens, every mistake is permanent — you can only break it out and redo it. That is why experienced site engineers spend more time watching the mixer, the slump cone, and the vibrator than they spend reading cube results a month later.

Site acceptance routine I recommend for every pour:

1. Check the batch ticket (mix design, w/c ratio, batch time).
2. Slump test on the first mixer — reject outside the specified range.
3. Visual check for segregation and cohesiveness.
4. Temperature check in extreme weather.
5. Air content check where specified (pavements, freeze-thaw exposure).

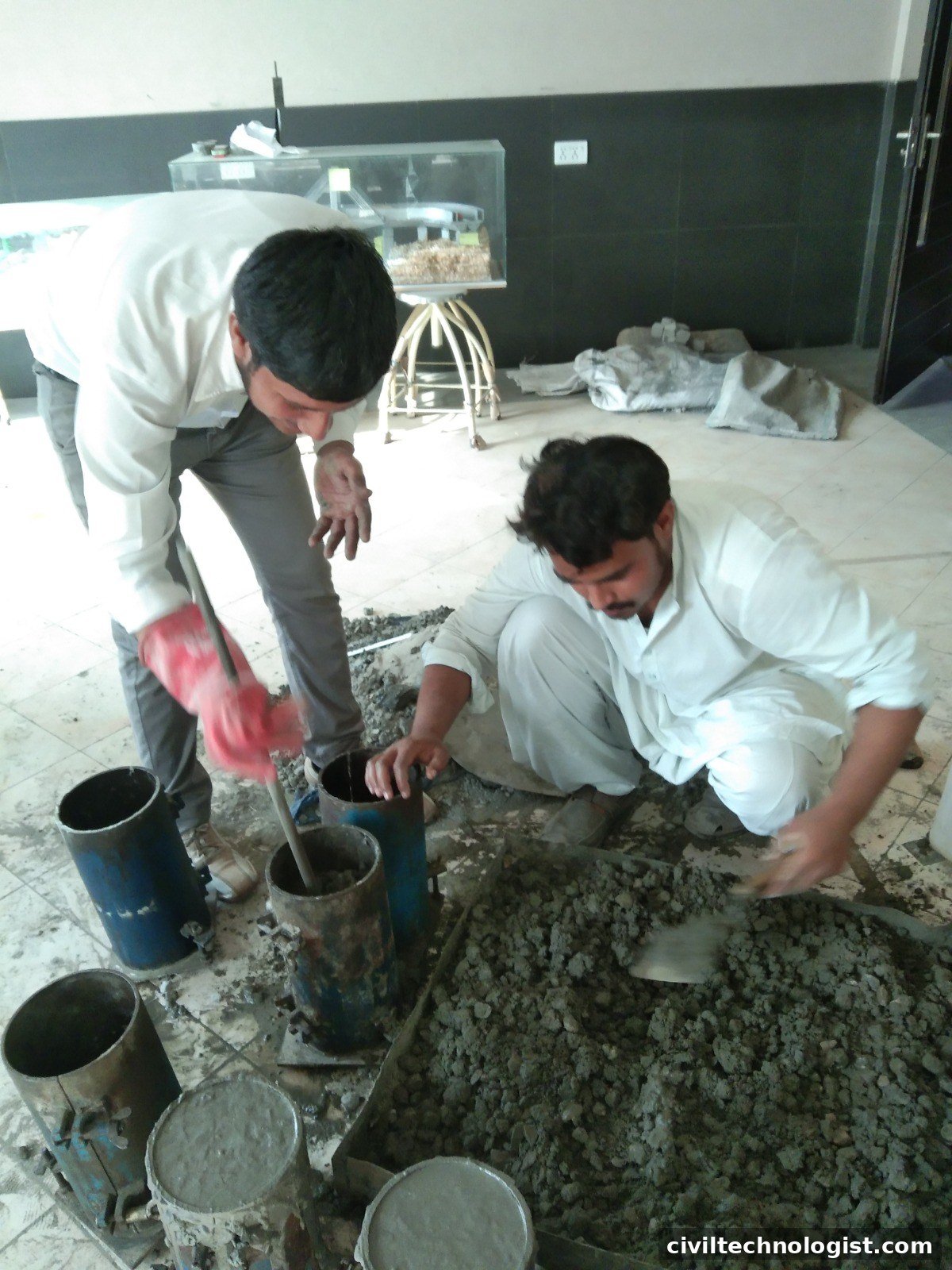

6. Cast cubes/cylinders from the same load you tested.

Hardened Concrete Properties

1. Compressive Strength

The defining property — the basis of mix design, grading (M20, M25, C30…), and acceptance. Measured by crushing 150 mm cubes (IS 516) or 150 × 300 mm cylinders (ASTM C39) at 7 and 28 days.

Typical 28-day values:

Concrete class	Typical use	28-day strength
Lean / blinding	Below footings	10–15 MPa
Ordinary structural	Slabs, beams, columns	20–40 MPa
High-strength	Prestressed, tall columns	60–100 MPa
Ultra-high performance	Special structures	120–200 MPa

Concrete keeps gaining strength after 28 days — roughly 10–15% more by 90 days with continued curing.

Strength gain with age (typical, as % of 28-day strength):

Age	Approx. strength (% of 28-day)
1 day	15–20%
3 days	40–45%
7 days	65–70%
14 days	85–90%
28 days	100% (design basis)
90 days	110–115%

Worked example — acceptance of cubes (IS 456): Three 150 mm cubes from an M25 pour crush at 27.5, 29.0, and 26.0 MPa at 28 days.

Mean = (27.5 + 29.0 + 26.0) ÷ 3 = 27.5 MPa

IS 456 acceptance: mean ≥ fck + 0.825 × standard deviation (assumed ~4 MPa for good control → 25 + 3.3 = 28.3 MPa target for the mean of the sample set), and no individual cube below fck − 3 = 22 MPa. Here the lowest cube (26.0) passes the individual check, and the mean (27.5) is close to target — but the plant should tighten control, because the margin is thin. One weak batch and the set fails.

2. Tensile Strength

Concrete is weak in tension — roughly 8–12% of its compressive strength. That is why we reinforce it. Measured by the split-cylinder test (ASTM C496 / IS 5816): a cylinder is loaded along its side until it splits, giving a truer tensile value than direct pulling.

Typical: for M30 concrete (~30 MPa), expect split tensile strength around 2.5–3.5 MPa.

3. Flexural Strength (Modulus of Rupture)

The tensile strength in bending — critical for pavements and slabs on grade. Measured on beam specimens under third-point loading (ASTM C78 / IS 516).

IS 456 gives the handy relation:

fr = 0.7 × √fck (N/mm²)

So for M30 (fck = 30): fr = 0.7 × √30 = 3.83 MPa.

Worked example — modulus of rupture for M25: fr = 0.7 × √25 = 0.7 × 5 = 3.5 MPa. On site, if you are checking a pavement concrete specified as M35, expect fr ≈ 0.7 × √35 = 4.14 MPa — beam test results much below this suggest a problem with compaction or curing, not just the mix.

4. Modulus of Elasticity

Stiffness — how much the concrete strains under load. Needed for deflection and crack-width calculations.

IS 456: Ec = 5,000 × √fck (N/mm²)

For M25: Ec = 5000 × √25 = 25,000 MPa (25 GPa). Poisson’s ratio for concrete is typically 0.15–0.20.

Worked example — Ec for M30: Ec = 5000 × √30 = 5000 × 5.477 = 27,386 MPa (≈ 27.4 GPa). Designers use this value to check that a long beam will not deflect beyond the span/250 or span/350 limits — a stiffer (higher-grade) concrete directly reduces deflection.

5. Creep

Creep is the slow, continuing deformation under sustained load — a column shortens a little more each year under the building’s weight. The creep coefficient (extra long-term strain ÷ short-term elastic strain) typically ranges from 1.5 to 4, higher for young concrete and dry environments. It is why long-term deflections are multiples of the short-term values, and why prestress losses must be calculated.

Practical note: Creep is why you never load a structure fully the day after casting. Striking formwork early is one thing (the concrete has enough strength); stacking full material loads on a week-old slab is another — early loading multiplies creep deflection for the life of the building.

6. Shrinkage

As concrete dries, it shrinks — roughly 0.0003 strain (300 microstrain) for drying shrinkage. Restrained shrinkage causes the cracks you see in slabs and walls. Controlled by: low water content, adequate curing, shrinkage-reducing joint spacing, and proper reinforcement distribution.

Field tip: Most shrinkage cracks I see are not a design failure — they are a curing failure. A slab that gets water curing for 7 days will show a fraction of the cracking of an identical slab left to dry in the sun. Curing compound is good; ponding or wet hessian is better.

7. Permeability and Durability

Permeability — how easily water and aggressive chemicals move through the concrete — governs durability more than strength does. A 40 MPa concrete with a 0.65 water-cement ratio can be less durable than a 25 MPa concrete at 0.45.

Durability rules of thumb:

• Water-cement ratio ≤ 0.45 for severe exposure (marine, chemical)
• Minimum cement content and cover per exposure class (IS 456 Table 3/4/5)
• Permeability drops dramatically below w/c 0.40 — this is the main reason high-performance concrete lasts

Maximum water-cement ratio by exposure (IS 456, reinforced concrete):

Exposure	Max w/c ratio	Min. cement (kg/m³)
Mild	0.55	300
Moderate	0.50	300
Severe	0.45	320
Very severe	0.45	340
Extreme (marine/chemical)	0.40	360

Worked example — durability vs strength: Two mixes both reach 30 MPa: Mix A at w/c 0.55, Mix B at w/c 0.42. For a water tank (severe exposure), Mix A fails the durability requirement (0.55 > 0.45) even though the cubes pass. The tank would leak and corrode within years. Strength alone never proves durability — the w/c ratio on the batch ticket does.

8. Density of Hardened Concrete

Normal-weight: 2,300–2,500 kg/m³. Lightweight structural: 1,600–2,000 kg/m³. Heavyweight (radiation shielding): up to 3,500+ kg/m³. Density affects dead load, thermal mass, and sound insulation.

9. Fire and Thermal Properties

Concrete is inherently fire-resistant (it does not burn), but prolonged high temperature spalls the surface and degrades strength — explosive spalling is a real risk in high-strength concrete. Coefficient of thermal expansion: roughly 10 × 10⁻⁶ per °C, which is conveniently close to steel’s — one reason reinforced concrete works.

How Fresh Properties Decide Hardened Properties

Fresh-stage decision	Hardened consequence
Extra water for workability	Lower strength, higher permeability, more shrinkage
Proper compaction	Full strength, dense cover, durable steel protection
Controlled bleeding	Sound surface, good bond to reinforcement
Right air content	Freeze-thaw durability without strength loss
Adequate curing	Strength gain continues; surface resists cracking
Correct temperature	Normal setting; no thermal or plastic-shrinkage cracks

Practical note: When a 28-day cube fails, the investigation almost always leads back to the fresh stage — water added at site, poor compaction, or curing stopped after two days. Test the fresh concrete properly and most hardened problems never happen.

Properties of Hardened Concrete That Matter Most for Design

If you are a student or a young engineer, the properties of hardened concrete you will actually use in design calculations are five: compressive strength (fck), tensile/flexural strength, modulus of elasticity (Ec), creep coefficient, and shrinkage strain. Everything else — density, thermal properties, permeability — enters through detailing rules (cover, w/c limits, joint spacing) rather than direct calculation. Master the five, respect the detailing rules, and your designs will stand up.

Frequently Asked Questions

What are the properties of fresh concrete?
Workability, consistency, setting time, bleeding, segregation, air content, temperature, and unit weight. Each is measurable with a standard test.

What are the properties of hardened concrete?
Compressive, tensile, and flexural strength; modulus of elasticity; creep; shrinkage; permeability/durability; density; and thermal/fire behaviour.

What is the most important property of fresh concrete?
Workability — because it controls whether the concrete can be placed and compacted properly, and proper compaction decides the strength and durability of the hardened concrete.

What is the relation between modulus of rupture and compressive strength?
IS 456 gives fr = 0.7√fck. For M30 concrete this is about 3.8 MPa.

How does the water-cement ratio affect the properties of hardened concrete?
A higher w/c ratio increases workability but reduces strength, increases permeability, and increases shrinkage and creep. For durability, IS 456 caps the w/c ratio at 0.40–0.55 depending on exposure — strength alone does not guarantee a durable structure.

What is the difference between workability and consistency?
Consistency is the fluidity of the mix (how wet or stiff it is); workability is the broader property — how easily the concrete can be mixed, placed, compacted, and finished without segregation. A mix can be fluid (high consistency) but still unworkable if it segregates.

How do you test air content of fresh concrete on site?
With a pressure-type air meter (ASTM C231): fill the meter with fresh concrete, apply pressure, and read the air percentage directly. Target 4–6% where freeze-thaw protection is needed; every extra 1% of air costs about 5% of compressive strength.

Why do the properties of fresh concrete matter for durability?
Because durability is built in the first hours: correct water content keeps permeability low, full compaction removes voids, and proper curing lets hydration continue. A durable hardened concrete is simply a fresh concrete that was handled correctly.

What causes low strength in hardened concrete?
Almost always a fresh-stage cause: extra water added at site, incomplete compaction (honeycombing), inadequate curing, wrong batch weights, or testing errors (poor cube casting/curing). Investigate the pour records before blaming the mix design.

Why does concrete gain strength after 28 days?
Hydration continues as long as moisture is present. With proper curing, concrete typically gains another 10–15% between 28 and 90 days.

Final Thoughts

Think of fresh and hardened concrete as one story, not two subjects: every property of the hardened structure was locked in during those first hours. The properties of fresh concrete — workability, air, temperature, and unit weight — are your last chance to get it right; the properties of hardened concrete — strength, stiffness, creep, and durability — are the receipt for how well you did. Test the fresh concrete, compact it properly, cure it patiently — and the hardened properties largely take care of themselves.

---

Written by Mohsin Raza Adil — BSc Civil Engineering Technologist (NTC-registered), Pakistan.
