Physical Properties of Cement: 8 Key Properties Explained

Cement looks like simple grey powder, but its performance in concrete depends on a handful of measurable physical properties. These are the properties that standards like ASTM C150 (the specification for Portland cement) control, and they are what the laboratory tests on this site actually check.

This article explains each of the physical properties of cement in plain language: what it means, why it matters on site, and the typical value or limit you should know. For the full test procedures, see our roundup of 12 different cement tests.

Physical vs Chemical Properties of Cement

Before the list, one distinction that confuses students: physical properties describe how cement behaves (fineness, setting, strength) and are measured by physical tests. Chemical properties describe what cement is made of — the proportions of lime (CaO), silica (SiO₂), alumina (Al₂O₃), iron oxide (Fe₂O₃), magnesia (MgO), and alkalis — measured by chemical analysis. The two are linked: excess magnesia in the chemistry shows up as failure in the soundness test, and the lime-silica balance drives the strength. On site you deal almost entirely with physical properties; the chemistry is the manufacturer’s responsibility, verified by mill certificates.

1. Fineness

What it means: How fine the cement particles are, measured as specific surface area — usually by the Blaine air-permeability test, in m²/kg.

Why it matters: Finer cement hydrates faster, so it gains strength quicker and generates more early heat. But grinding too fine also increases water demand, shrinkage, and cracking risk. Fineness is a balance, not a race.

Typical limit: ASTM C150 requires a minimum Blaine fineness of 260 m²/kg for ordinary Portland cement (Type I/II), with a maximum of 430 m²/kg.

2. Standard Consistency

What it means: The percentage of water (by weight of cement) needed to make a cement paste of “normal” plasticity — the reference paste used for the setting-time and soundness tests.

Why it matters: Every other paste test is performed at standard consistency, so it is the baseline of cement testing. On site it also hints at water demand: a cement needing much more water than usual will need more water in the concrete mix too.

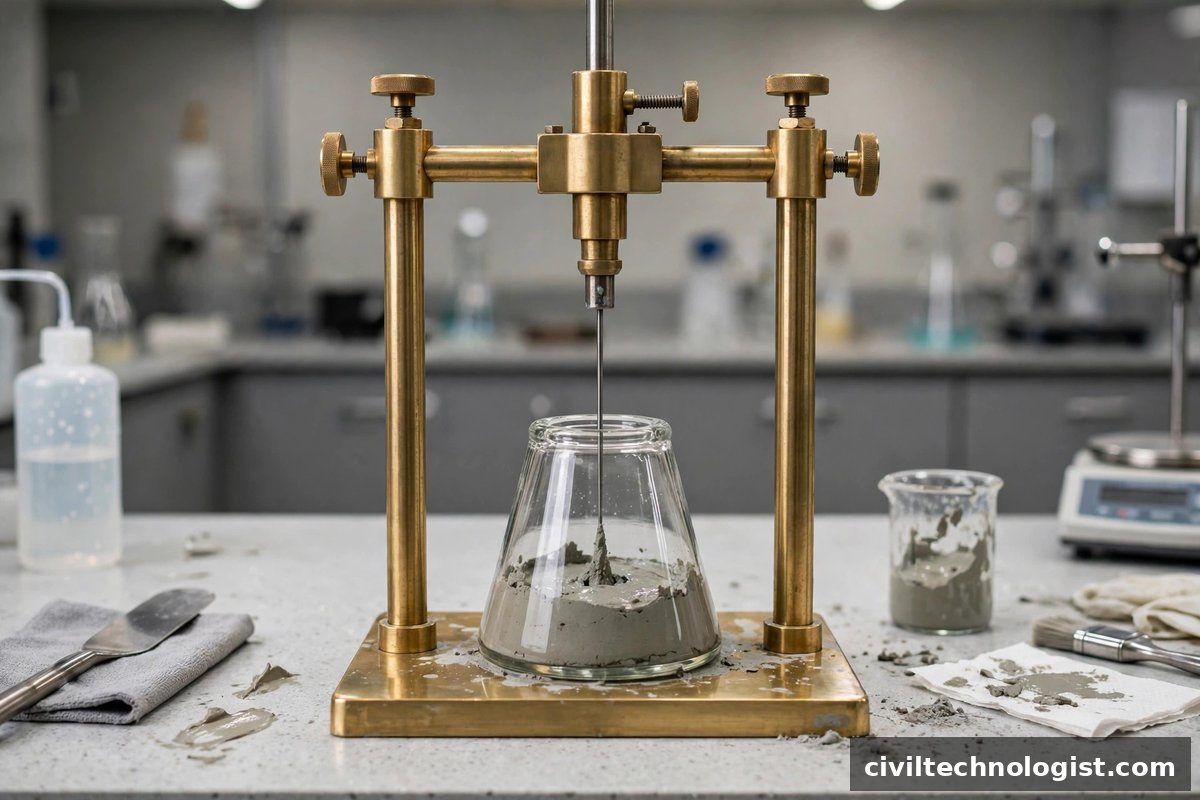

Typical value: Usually 25–35% water by weight of cement. We explain the full procedure in our article on the consistency test using the Vicat apparatus.

3. Setting Time (Initial and Final)

What it means: The time cement paste takes to stiffen. Initial setting time is when the paste starts losing plasticity (you can no longer place and compact it properly); final setting time is when it has hardened enough to resist a defined pressure.

Why it matters: This is the property that directly controls your working window. Too short an initial set and the concrete stiffens before it is placed and compacted — a serious problem in hot weather or on long hauls. Too long a final set delays formwork removal and finishing.

Typical limits (ASTM C150, Vicat test): initial setting not less than 45 minutes, final setting not more than 375 minutes (6 hours 15 minutes). (The alternative Gillmore test uses 60 minutes / 600 minutes.)

4. Soundness

What it means: Whether the cement undergoes harmful volume expansion after setting, caused by excess free lime or magnesia. Measured by the autoclave expansion test (or the Le Chatelier test in some standards).

Why it matters: Unsound cement expands slowly inside hardened concrete, cracking it from within — a defect that appears months or years later and cannot be repaired. This is one of the few cement properties where failure is effectively a rejection.

Typical limit: Autoclave expansion not more than 0.80% (ASTM C150); Le Chatelier expansion not more than 10 mm where that test is used.

5. Compressive Strength

What it means: The strength of standard cement mortar cubes (or concrete specimens) at set ages — the headline number that grades cement (33, 43, 53 grade in some standards; Type I/II/III/V in ASTM).

Why it matters: It is the most direct measure of what cement is for: making concrete strong. Strength at 3 and 7 days tells you about early strength gain (formwork striking, loading); 28-day strength is the design reference.

Typical limit: ASTM C150 requires, for example, 28 MPa minimum at 28 days for Type I cement (higher grades and Type III high-early-strength cement have higher requirements).

6. Specific Gravity

What it means: The density of cement particles relative to water — measured with kerosene in a Le Chatelier flask (water cannot be used because cement reacts with it).

Why it matters: It is used in concrete mix design calculations (converting weights to absolute volumes) and as a quick quality check: contaminated or adulterated cement shows an abnormal value.

Typical value: About 3.15 for fresh Portland cement. Values noticeably below ~3.1 suggest the cement has absorbed moisture or contains mineral admixtures/fillers. Full procedure: specific gravity test of cement.

7. Heat of Hydration

What it means: The heat released as cement reacts with water, measured in kJ/kg — most of it in the first days after mixing.

Why it matters: In thin sections the heat escapes harmlessly. In mass concrete — dams, raft foundations, thick piers — trapped heat causes large temperature differences between the hot core and the cooler surface, which cracks the concrete. Low-heat cements exist specifically for this work.

Typical limit: Where specified, ASTM C150 limits 7-day heat of hydration to 290 kJ/kg for moderate-heat and high-early-strength types.

8. Bulk Density (Unit Weight)

What it means: The weight of cement powder per unit volume as packed in a bag — different from specific gravity, because it includes the air between particles.

Why it matters: It converts between bags and volumes in batching and estimation: one 50 kg bag occupies about 0.0347 m³.

Typical value: About 1440 kg/m³ for Ordinary Portland Cement. (Our unit weight of construction materials table lists this alongside other materials, and the unit weight test article shows how such values are measured.)

How Each Property Decides a Site Decision

Memorising limits is less useful than knowing which property answers which site question:

Site question	Property to check	What you do
Can we place this load before it stiffens?	Setting time	Check batch time vs initial set; plan transit in hot weather
Is this cement safe for structural concrete?	Soundness + strength	Reject unsound cement; confirm grade meets design
Why is the mix harsh and thirsty?	Fineness + consistency	Expect higher water demand; adjust with admixture, not blind water
Will this raft crack from heat?	Heat of hydration	Use low-heat cement, pour in lifts, monitor temperature
How many bags per cubic metre?	Bulk density	1 bag ≈ 0.0347 m³ for estimation
Is this cement adulterated or stale?	Specific gravity	Below ~3.1 → investigate before use

Typical Values by Cement Grade

Strength grades change the headline number; the other physical properties of cement stay in the same bands:

Property	OPC 33 Grade	OPC 43 Grade	OPC 53 Grade
28-day strength (min)	33 MPa	43 MPa	53 MPa
Fineness (Blaine, min)	225 m²/kg	225 m²/kg	225 m²/kg
Initial setting (min)	≥ 30 min	≥ 30 min	≥ 30 min
Final setting (max)	≤ 600 min	≤ 600 min	≤ 600 min
Soundness (Le Chatelier)	≤ 10 mm	≤ 10 mm	≤ 10 mm

(IS 269 / 8112 / 12269 values; ASTM Type I/II/III use the C150 limits given in the sections above.)

Effect of Storage on Physical Properties

Cement is not wine — it does not improve with age. Bad storage degrades the physical properties of cement measurably:

Storage condition	Effect on properties
Dry shed, used within 4 weeks	No measurable change
3 months in humid air	Strength loss ~10–20%; setting time may shorten; lumps form
6 months, damp storage	Strength loss up to ~30%; specific gravity drops as particles hydrate
Direct water contact	Cement ruined — hydrated lumps never regain strength

Practical note: If cement has been stored more than 3 months, retest setting time and strength before structural use. A 50 kg bag that feels lumpy is telling you its physical properties have already changed — believe it.

Properties at a Glance

Property	Typical value / limit	Test
Fineness (Blaine)	260–430 m²/kg	Air permeability
Standard consistency	25–35% water	Vicat apparatus
Initial setting time	≥ 45 min	Vicat (ASTM C150)
Final setting time	≤ 375 min	Vicat (ASTM C150)
Soundness (autoclave)	≤ 0.80% expansion	Autoclave
Compressive strength (Type I, 28 d)	≥ 28 MPa	Mortar cubes
Specific gravity	≈ 3.15	Le Chatelier flask
Heat of hydration (7 d)	≤ 290 kJ/kg (where specified)	Calorimeter
Bulk density	≈ 1440 kg/m³	Container weighing

Frequently Asked Questions

What are the physical properties of cement?
The eight key ones: fineness, standard consistency, setting time (initial and final), soundness, compressive strength, specific gravity, heat of hydration, and bulk density.

What is the specific gravity of cement?
Approximately 3.15 for fresh Portland cement. A lower value usually means the cement has absorbed moisture or contains added fillers.

What is the initial and final setting time of cement?
Per ASTM C150 (Vicat test): initial setting not less than 45 minutes, final setting not more than 375 minutes. These define the working window for placing and finishing concrete.

Why is soundness tested in cement?
To detect excess free lime or magnesia that would cause delayed expansion and cracking of hardened concrete. Unsound cement is rejected.

Does finer cement mean better cement?
Not exactly. Finer cement gains strength faster, but it also needs more water, generates more heat, and shrinks more. Standards set both minimum and maximum fineness limits for this reason.

What is the difference between physical and chemical properties of cement?
Physical properties of cement (fineness, setting time, strength, soundness) describe how it behaves and are measured by physical tests. Chemical properties (lime, silica, alumina, magnesia content) describe its composition and are checked by chemical analysis against the manufacturer’s mill certificate.

How does storage affect the physical properties of cement?
Moisture is the enemy: after about 3 months in humid storage, cement can lose 10–20% of its strength, and after 6 months up to 30%. Specific gravity drops as particles pre-hydrate. Always retest old cement before structural use.

Which physical property of cement controls the concreting time window?
Setting time — initial set (≥ 45 min) is your placing deadline and final set (≤ 375 min) governs finishing and formwork planning. In hot weather, plan shorter hauls because the effective window shrinks.

What does a low specific gravity reading tell me?
That the cement has likely absorbed moisture or been adulterated with fillers. Fresh OPC reads about 3.15; anything noticeably below ~3.1 deserves investigation — check storage conditions and consider a strength test before use.

Why is heat of hydration important in mass concrete?
Because trapped heat creates a hot core and cooler surface; the temperature difference cracks the concrete. Dams and raft foundations manage it with low-heat cement, pour lifts, and temperature monitoring.

Final Thoughts

You do not need to memorise every limit in the table above — but you should know which property controls which site decision. Setting time controls your placing window; soundness is a pass/fail safety gate; strength is the design number; specific gravity feeds your mix design. When a concrete problem appears on site, one of these eight physical properties of cement is usually behind it, and the lab tests exist to find out which.

---

Written by Mohsin Raza Adil — BSc Civil Engineering Technologist (NTC-registered), Pakistan.
