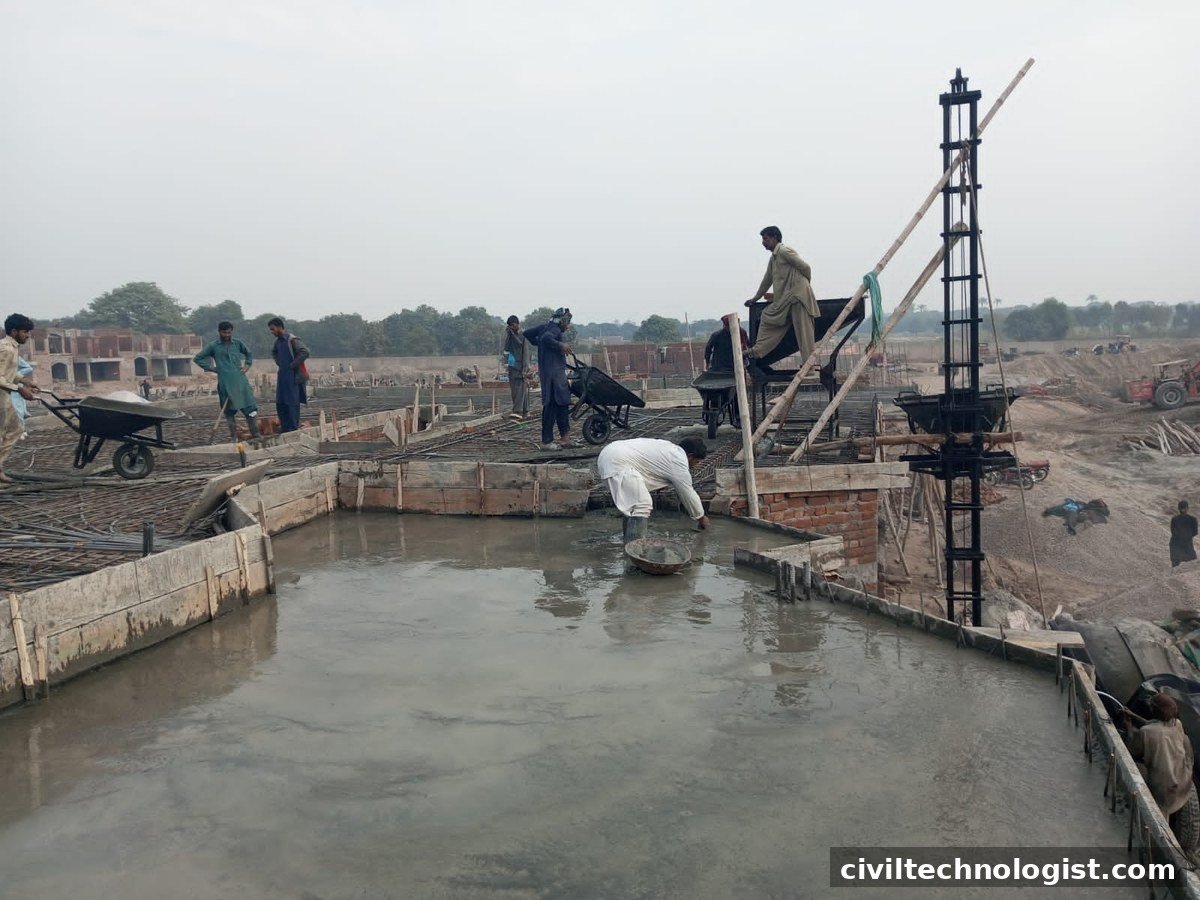

Concrete is cement, water, and aggregates — but on real projects it is rarely just those three. A small dose of a chemical admixture can keep a ready-mix truck workable for a two-hour haul, let you pour in 40°C heat, or give you high strength without extra cement.
Admixtures are materials added to concrete during mixing, in quantities generally not more than 5% of the cement weight, to modify its fresh or hardened properties. This guide covers the standard types, what each one does, typical dosages, and the mistakes to avoid.
The Standard Classification: ASTM C494
The international reference is ASTM C494 (chemical admixtures for concrete), which defines eight types. The regional equivalent used in South Asia is IS 9103. The types:
| Type | Name | What it does |
|---|---|---|
| A | Water-reducing | Reduces mixing water ≥ 5% at the same workability |
| B | Retarding | Delays setting time |
| C | Accelerating | Speeds up setting and early strength gain |
| D | Water-reducing + retarding | Both effects combined |
| E | Water-reducing + accelerating | Both effects combined |
| F | High-range water-reducing (superplasticizer) | Reduces water ≥ 12% — flowing concrete |
| G | High-range water-reducing + retarding | Flowing concrete with delayed set |
| S | Specific performance | Any claimed special effect, verified by testing |
A separate standard, ASTM C260, covers air-entraining admixtures, which deliberately introduce microscopic air bubbles.
Type by Type: Purpose, Dosage, Effect
Type A — Water Reducers (Plasticizers)
The everyday workhorse. By dispersing cement particles, a plasticizer lets you cut 5–10% of the mixing water while keeping the same slump — which directly raises strength and durability, since lower water-cement ratio means better concrete.
- Typical dosage: 0.2–0.5% of cement weight
- Used for: general ready-mix, pumpable concrete, fair-faced work
- Watch out: mild retardation is common; adjust if the pour is in cold weather
Type B — Retarders
Retarders slow down cement hydration and delay the setting time — typically by 1 to 3 hours. They are essential for long hauls, hot-weather concreting, and large continuous pours where a cold joint would otherwise form between successive batches.
- Typical dosage: 0.1–0.4% of cement weight
- Used for: hot weather, long transport, mass pours, slipforming
Type C — Accelerators
Accelerators do the opposite: they shorten setting time and boost early strength. The classic accelerator is calcium chloride; chloride-free alternatives (based on nitrates, formates, or thiocyanates) are preferred in reinforced concrete because chlorides promote steel corrosion.
- Typical dosage: 0.5–2% of cement weight (chloride-based); always respect code chloride limits in reinforced concrete
- Used for: cold weather, early formwork removal, emergency repairs, shotcrete
Type D — Water-Reducing + Retarding
A plasticizer with a built-in retarder — the standard choice for hot-weather ready-mix, where you need both lower water content and protection against the batch setting in the truck.
- Typical dosage: 0.2–0.5% of cement weight
Type E — Water-Reducing + Accelerating
The cold-weather counterpart: water reduction plus faster set. Used where early strength matters and temperatures are low.
Types F & G — Superplasticizers (High-Range Water Reducers)
Superplasticizers are the most powerful admixtures in routine use: they cut water by 12–30% and can turn a stiff mix into flowing, self-levelling concrete at the same water-cement ratio. Type G adds retardation for long hauls.
- Typical dosage: 0.5–2% of cement weight
- Used for: high-strength concrete, heavily reinforced sections, pumped concrete, self-compacting concrete, precast work
- Watch out: the effect is short-lived (30–90 minutes with older generations) — add at the plant or on arrival, never hours early
Air-Entraining Admixtures (ASTM C260)
These create billions of tiny, stable air bubbles (typically 4–6% air in the hardened concrete) that act as pressure-relief chambers when water in the pores freezes. Essential in freeze-thaw climates; they also improve workability and reduce bleeding.
- Typical dosage: 0.02–0.2% of cement weight (very small — always dose by trial)
- Watch out: every 1% of extra air costs roughly 5% of compressive strength — control it with regular air-meter tests
Mineral Admixtures (Supplementary Cementitious Materials)
These are not dosed in fractions of a percent — they replace part of the cement (or are added as extra powder):
| Material | Typical replacement | Main benefit |
|---|---|---|
| Fly ash | 15–35% of cementitious material | Workability, lower heat, long-term strength, economy |
| Ground granulated blast-furnace slag (GGBS) | 30–70% | Low heat, sulphate and chloride resistance |
| Silica fume | 5–10% | Very high strength, very low permeability |
| Metakaolin | 5–15% | Strength, white/fair-faced finishes |
Practical note: Fly ash is widely available near coal power plants in Pakistan and is the most economical way to improve a mix — but it slows early strength gain, so plan formwork-stripping times accordingly. Silica fume goes the other way: it demands careful curing, or the surface will crack from plastic shrinkage.
How to Select an Admixture
- Start from the problem, not the product. Long haul in summer? You need retardation (Type B or D). Congested reinforcement? You need flow (Type F). Cold morning pour? Acceleration (Type C, chloride-free).
- Check compatibility. Admixtures interact with the cement, with fly ash, and with each other. Always run a trial mix with the actual materials before the first structural pour.

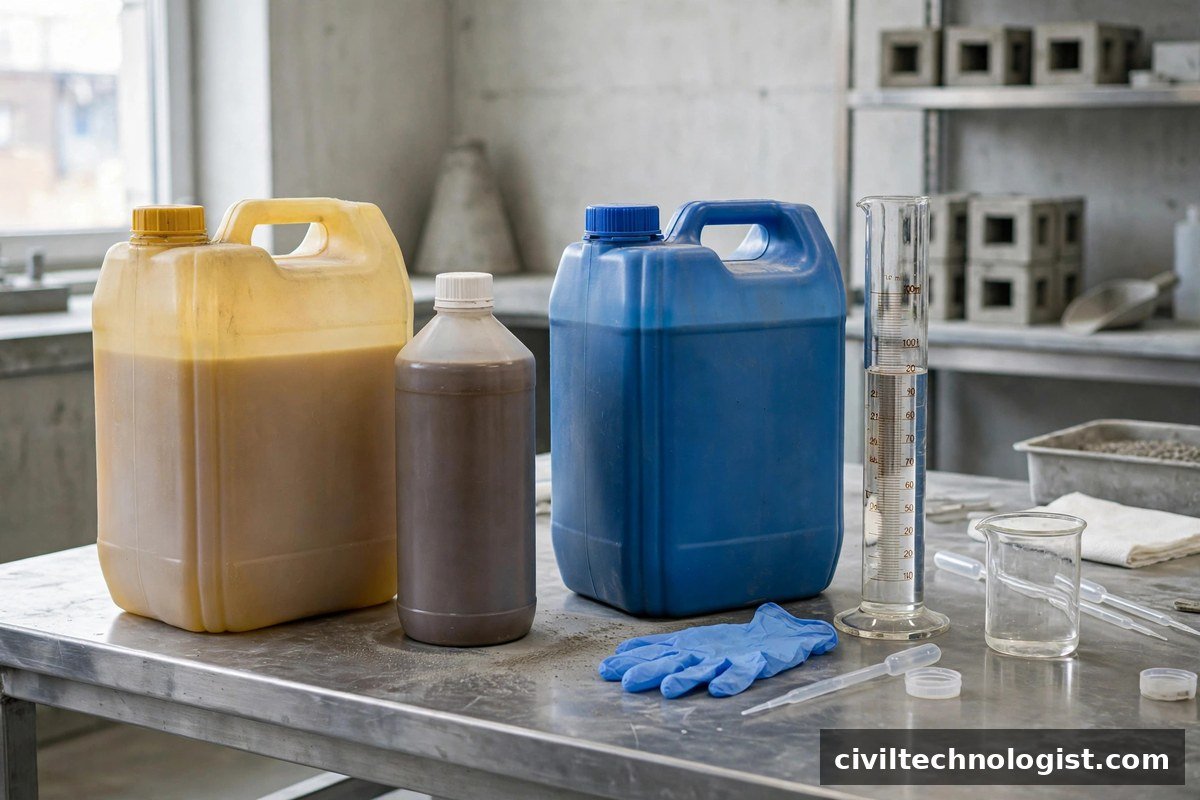

- Dose by weight of cement, and measure it. Admixtures are batched with dispensers, not poured from a bucket by eye. A “little extra for luck” is how overdosing happens.
- Read the data sheet for the specific product: recommended dosage range, addition point (with mixing water vs delayed addition), and temperature limits.
The Dangers of Overdosing
More admixture is not better. Typical consequences:
| Overdosed admixture | What happens |
|---|---|
| Retarder | Concrete stays soft for a day or more; surface never hardens properly; strength loss |
| Superplasticizer | Severe segregation and bleeding — stone sinks, water rises, laitance forms |
| Accelerator | Flash set in the mixer or pump; long-term strength drops |
| Air-entrainer | Strength falls ~5% per extra 1% air; freeze-thaw benefit reverses into weakness |
| Any admixture | Unpredictable interactions — trial mixes exist precisely to catch these |
Practical note: On site, the most common admixture failure is not the wrong product but the wrong timing — superplasticizer added at the batching plant for a site 90 minutes away, arriving as ordinary stiff concrete. For long hauls, use a retarding superplasticizer (Type G) or plan a re-dose on arrival with the supplier’s approval.
Admixtures and Concrete Temperature
Admixtures and temperature are linked: heat accelerates setting (favouring retarders), cold delays it (favouring accelerators). Whatever the season, keep the fresh concrete within limits — the concrete temperature guide covers the numbers, and the fresh and hardened properties guide explains how each property is tested.
Frequently Asked Questions
What are the types of admixtures as per ASTM C494?
Types A (water-reducing), B (retarding), C (accelerating), D (water-reducing + retarding), E (water-reducing + accelerating), F (high-range water-reducing), G (high-range water-reducing + retarding), and S (specific performance).
How much admixture is added to concrete?
Typical ranges by weight of cement: plasticizers 0.2–0.5%, retarders 0.1–0.4%, superplasticizers 0.5–2%, air-entrainers 0.02–0.2%. Always confirm with the manufacturer’s data sheet and a trial mix.
Can admixtures replace good curing?
No. Admixtures modify the mix; they do not hydrate the cement for you. Poor curing ruins admixed concrete just as surely as plain concrete — faster, in the case of silica fume mixes.
Are admixtures safe for reinforced concrete?
Chloride-based accelerators are restricted in reinforced and prestressed concrete because chlorides corrode steel. Use chloride-free alternatives and respect code limits on total chloride content.
Final Thoughts
Admixtures are powerful tools, but they reward the engineer who doses by trial and punishes the one who doses by guesswork. Pick the type for your actual site problem, verify it in a trial mix with your real materials, and measure every dose. Used that way, a fraction of a percent of admixture can save hours of labour and tonnes of cement.
Written by Mohsin Raza Adil — BSc Civil Engineering Technologist (NTC-registered), Pakistan.
5 thoughts on “Concrete Admixtures and Their Types — Dosage, Effects & Selection Guide”
