Auger Cast Piles: Design, Construction, Installation & Applications

When a building’s loads are too heavy for shallow footings — bridges, towers, industrial sheds on soft ground — engineers turn to deep foundations. Among them, auger cast piles (also called continuous flight auger or CFA piles, and in the US often augered cast-in-place / ACIP piles) are one of the fastest-growing choices: they are drilled, grouted, and reinforced in a single continuous operation, quietly, with almost no vibration.

This article explains what auger cast piles are, when to use them, the equipment involved, the full step-by-step installation procedure, grout specifications, quality control requirements, advantages, limitations, and typical applications.

What Are Auger Cast Piles?

An auger cast pile is a cast-in-place deep foundation element formed by drilling a hollow-stem continuous-flight auger into the ground to the design depth, then pumping cement grout (or fluid concrete) through the hollow stem while the auger is withdrawn — forming a continuous column of grout in the ground. A steel reinforcement cage is then inserted into the fluid grout.

The key distinction: unlike conventional bored piles, the hole is never left open and unsupported. The grout displaces the soil as the auger comes out, so the pile can be installed safely below the water table without casing or bentonite slurry — a huge practical advantage in alluvial soils.

Typical ranges: diameters 300–1200 mm, depths up to 30 m or more, and working capacities up to several thousand kN, depending on diameter, depth, and ground conditions.

When to Use Auger Cast Piles

Auger cast piles are the natural choice when:

• Soils are loose sands, soft clays, or water-bearing strata where open boreholes would collapse.
• The site is noise- and vibration-sensitive — next to existing buildings, hospitals, or running infrastructure (no hammering, unlike driven piles).
• Speed matters: CFA rigs can complete several piles per day, making them economical for large pile groups.
• There is low headroom under bridges or inside existing structures (short-mast rigs can work where driven-pile hammers cannot).
• Spoil disposal must be minimised — the auger brings up far less soil than an open boring.

Practical note: Auger cast piles are less forgiving of poor supervision than driven piles. You can’t see the finished pile underground, so the quality lives or dies on the grout pressure readings and the grout volume record during withdrawal. If the operator pulls the auger faster than the grout flows, you get a necked or discontinuous pile — the classic CFA defect.

Equipment

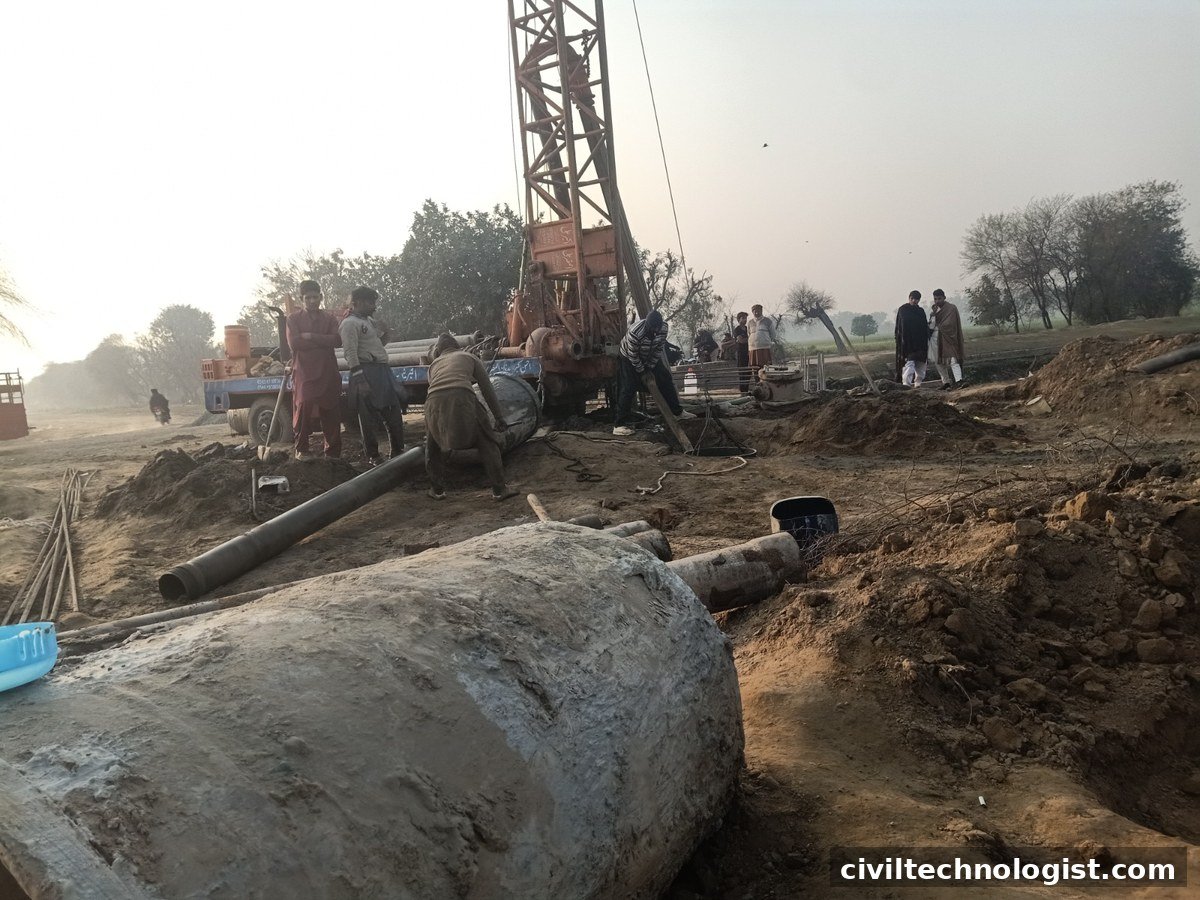

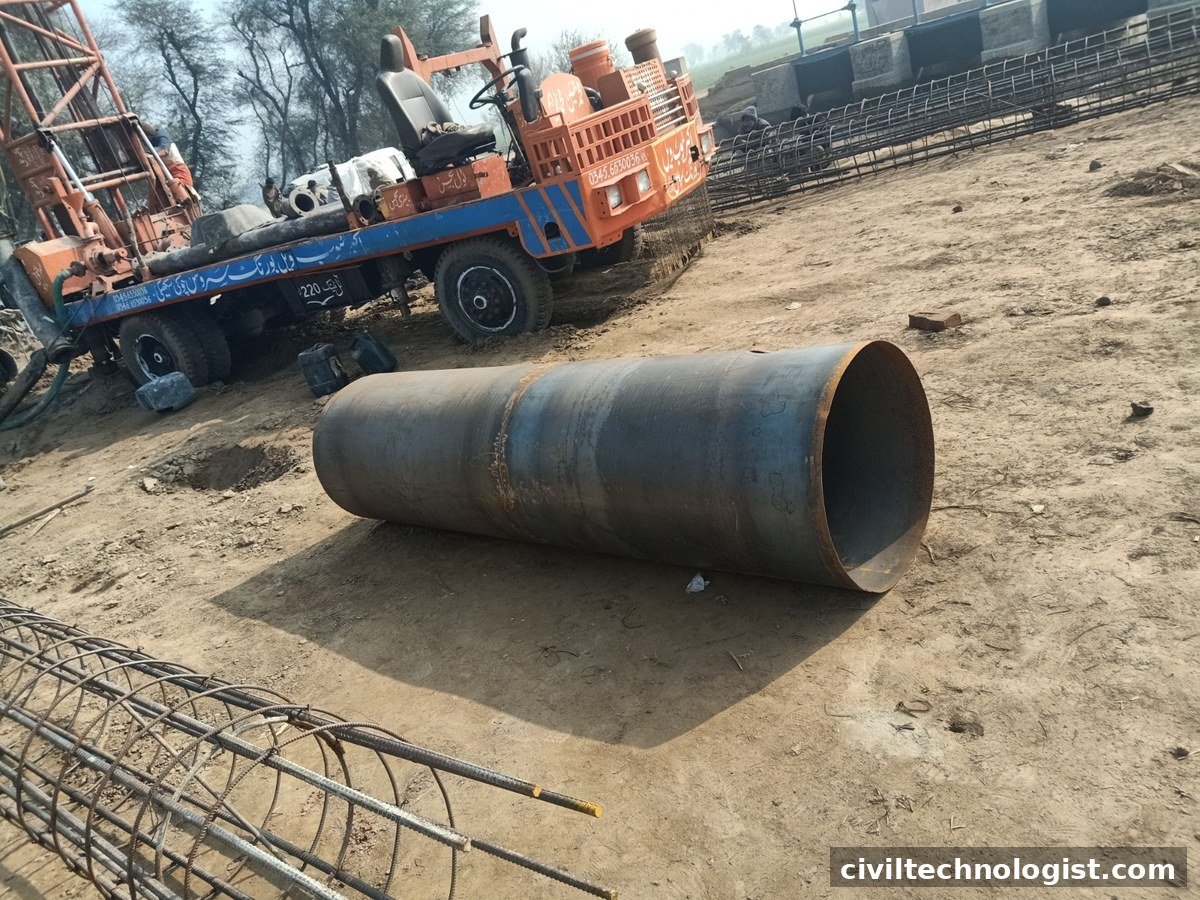

• CFA drilling rig: a crawler-mounted rotary rig with a long leader/mast and high-torque hydraulic head that drives the hollow-stem auger. Modern rigs carry automated monitoring systems recording depth, rotation, penetration rate, torque, and grout pressure/volume in real time.
• Continuous flight auger: a hollow central stem with a helical flight welded along its length, fitted with a disposable plug at the bottom that stops soil entering the stem during drilling.
• Grout pump and batching: a high-capacity grout pump (often truck-mounted) fed by a site batching/mixing plant, connected to the rig by hoses.

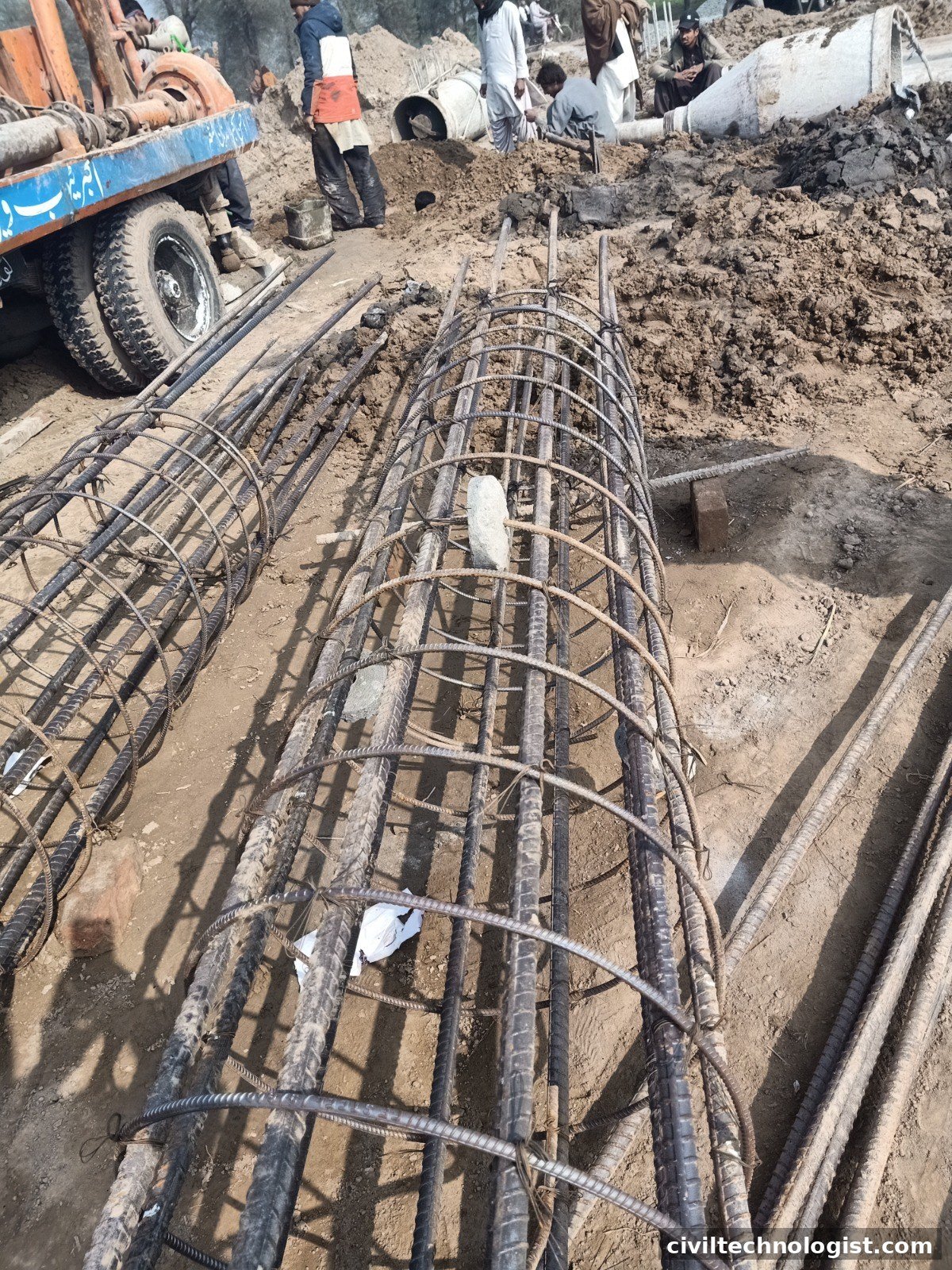

• Reinforcement cages: prefabricated steel cages, placed with a small crane or the rig’s auxiliary winch after grouting.

Installation Procedure (Step by Step)

1. Set out and position. Mark the pile position from the survey grid. Position the rig so the auger is vertical — check plumb with the rig’s inclinometer. Out-of-plumb piles lose capacity and can clash with neighbouring piles.
2. Drill to design depth. Rotate the continuous-flight auger into the ground at a steady rate. Do not “spin” the auger excessively at depth without advancing — over-rotation removes too much soil and loosens the ground around the pile. The disposable plug at the auger tip keeps soil out of the hollow stem.
3. Start grout pumping. At the design depth, begin pumping grout through the hollow stem. Lift the auger slightly (150–300 mm) so grout pressure expels the bottom plug, then re-drill briefly to the design tip level to re-establish the base.
4. Withdraw under positive pressure. Raise the auger at a controlled rate, keeping the auger rotating and maintaining a continuous head of grout (commonly a minimum of about 3 m of grout on the flighting above the injection point) with positive pressure on the gauges at all times. Coordinate the withdrawal rate with the grout flow so the hole is never left unsupported.
5. Verify grout volume. The total grout placed must be at least 115% of the theoretical pile volume — the excess accounts for ground irregularities and proves the pile is fully formed. Record the grout volume in increments (e.g. every 1.5 m) during withdrawal.
6. Clean the pile head. Once the auger is clear, strike off the grout at the pile head to the required cut-off level, removing contaminated surface grout.

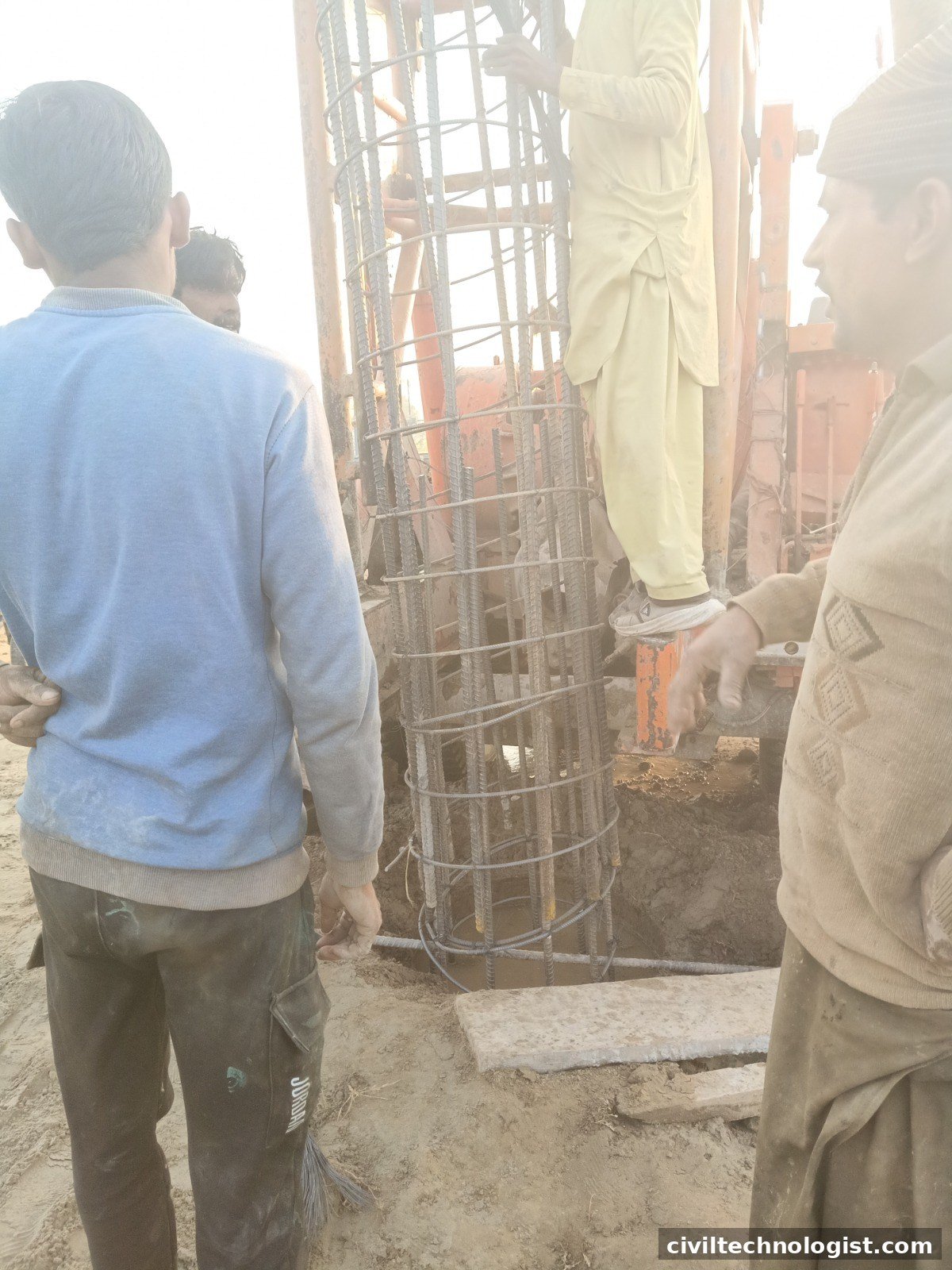

7. Insert the reinforcement cage. Lower the prefabricated cage into the fluid grout, centred with spacers. Long cages may need a vibrator to assist penetration; the cage must reach its design depth before the grout stiffens.
8. Record everything. Keep a per-pile log: pile number, tip and cut-off elevations, grout volume, pressures, cage details, and any anomalies. This log is the pile’s birth certificate.

Grout and Concrete Specifications

Auger cast piles are typically filled with cement grout (sand–cement, no coarse aggregate) or high-slump concrete:

• Grout composition: Portland cement (ASTM C150), fine aggregate/sand (ASTM C33), mineral filler and fluidifier as needed, and clean water — proportioned to stay pumpable with solids in suspension and minimal bleeding.
• Strength: a minimum 28-day compressive strength of 4000 psi (≈ 27.6 MPa) is the widely used baseline (e.g. PIP STS02465), unless the structural design requires more — some specifications demand 5000 psi (34.5 MPa).
• Quality testing: grout cubes (commonly 50 mm / 2-inch cubes) are cast daily from the grout as placed — typically sets of nine: three tested at 7 days, three at 28 days, three held in reserve — and tested per ASTM C109.
• Reinforcement: minimum cover per project specifications; cages designed for structural and lateral loads.

Quality Control and Testing

Because the pile is hidden underground, QC is procedural — it happens during installation, not after:

• Real-time monitoring: depth, torque, rotation speed, grout pressure, and grout volume recorded by the rig’s instrumentation for every pile.
• Grout volume check: less than 115% of theoretical volume = reject or investigate.
• Integrity testing: low-strain pile integrity tests (PIT) — sonic echo or transient dynamic response — on a percentage of piles to detect necking, voids, or inclusions.
• Load testing: static axial load tests per ASTM D1143 (compression), ASTM D3689 (tension), or ASTM D3966 (lateral) on sacrificial test piles before production piling — this is how the design capacity is actually verified.
• Independent inspection: a qualified testing agency should observe installation and certify the grout testing and pile records.

Advantages and Limitations

Advantages:

• Virtually vibration-free and quiet — ideal for urban and sensitive sites.
• Works below the water table without casing or bentonite.
• Fast production — high daily output reduces programme time.
• Minimal spoil compared with open bored piles.
• Adaptable diameters and depths from one rig.

Limitations:

• Heavily dependent on workmanship — defects are hidden; strict supervision is non-negotiable.
• Reinforcement cages are limited in length (commonly up to about 12 m without assistance), so long piles may be unreinforced over part of their length.
• Not suitable for very hard rock, boulders, or highly variable ground where the auger cannot advance uniformly.
• Higher concrete/grout overbreak than driven piles.

Applications

Auger cast piles are used for commercial and residential buildings on poor soils, bridge abutments and piers, retaining walls, transmission towers, industrial plants, and underpinning work. They are also common in transportation infrastructure — highway interchanges, rail structures, and embankment support — where speed and low vibration are decisive.

Frequently Asked Questions

What is the difference between CFA piles and bored piles?
In CFA (auger cast) piling, the hole is never left open: grout is pumped through the hollow auger as it is withdrawn. Conventional bored piles are drilled open (with casing or bentonite), then concreted with a tremie. CFA is faster and better in collapsing ground; bored piles allow inspection of the bore and longer reinforcement.

What is the minimum grout strength for auger cast piles?
Commonly 4000 psi (27.6 MPa) at 28 days per industry specifications such as PIP STS02465, unless the design specifies higher. Verify against your project specification.

How are auger cast piles tested?
By monitoring grout volume and pressure during installation (≥115% of theoretical volume), low-strain integrity tests (PIT) on production piles, and static load tests per ASTM D1143 on test piles.

Can auger cast piles be installed below the water table?
Yes — this is one of their main advantages. The grout displaces groundwater and supports the bore continuously, so no casing or bentonite slurry is needed.

---

Written by Mohsin Raza Adil — BSc Civil Engineering Technologist (NTC-registered), Pakistan.
